Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter

Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter
Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter

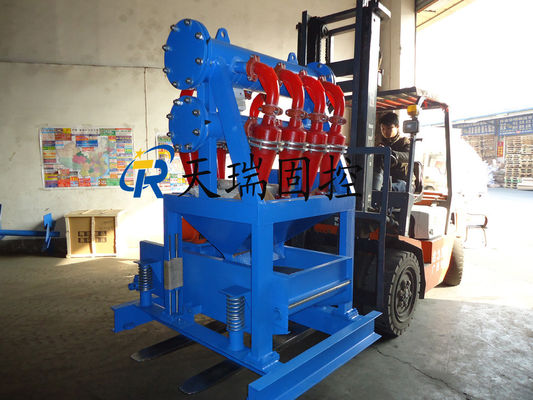

Large Image :  Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter

Product Details:

Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRCN100-6N

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets / Month
Detailed Product Description
Capacity: 90m3/h Cyclone Specs: 4"
Cyclone Qty: 6nos Working Pressure: 0.25-0.4Mpa
Inlet Size: DN125mm Outlet Size: DN150mm
Specification Point: 15μm-44μm Bottom Shaker: TRZS60
Dimension: 1510*1360*2250mm Weight: 560kg
High Light:

dewatering hydrocyclone

,

hydrocyclone dewatering

,

polyurethane hydrocyclone

Solid Control Equipment Drilling Fluid Desilter , Oilfield Well Drilling Desilter



Introduction



Hydro-cyclone is a kind of equipment for classifying the ore pulp by use of centrifugal force. It has no motion and dynamic parts,and needs to be matched with corresponding slurry pump. It is mainly used in ore dressing industry for classifying, dewatering and desliming.



TRCN series oilfield Desilter is the third class to treat the drilling fluids. According to the size of the cyclone diameter, they are divided into Desander and Desilter. Usually the cyclone diameter is less than 6" is called Desilter, and used as the third-control equipment in drilling operation. We commonly used 5 "and 4" cyclone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cyclone into Desilter.



Main Specialties of TRCN series desilter

  1. Heat treatment on entire deck.
  2. Painting: Heavy anti-corrosion paint.
  3. Inlet and outlet adopt fast joint connection.
  4. High strength compound rubber material used to reduce shocking.
  5. Cyclones with high wearing-resisting polyurethane and high-chromium iron.
  6. International famous brand vibration motor with Martin or OLI.
  7. Electrinic control system from famous brand explosion-proof eletronic switch.


Parameters of TRCN Series Mud Desilter



Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.



Solid Control Equipment Desilter Hydrocyclone Oilfield Well Drilling Desilter 0



Application



TR mud desilter is widely used in oil & gas drillingcity bored piling, tunneling constructiontrenchless HDDDrilling Waste Management, Coal Bed Gas Solids Control System, environment protection, micro-tunneling, Oil Sludge Dewatering Systems, mining, Oil Mud Seperation, Water Drilling etc



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
