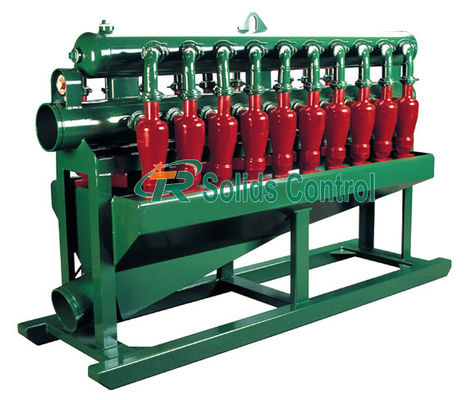

Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment

Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment
Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment

Large Image :  Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRCN100-20N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets / Month
Detailed Product Description
Capacity: 300m3/h Cyclone Specs: 4"
Cyclone Qty: 20nos Working Pressure: 0.25-0.4Mpa
Inlet Size: DN150mm Outlet Size: DN200mm
Specification Point: 15μm-44μm Bottom Shaker: TRZS703
Dimension: 2770*1785*1810mm Weight: 1950kg
High Light:

dewatering hydrocyclone

,

hydrocyclone dewatering

,

polyurethane hydrocyclone

Large Capacity Mud Desilter Solids Control Equipment / Drilling Mud Desilter



Introduction


The drilling fluid is fed into the hydrocyclones in the tangent direction by the sand pump under the pressure of 0.2~0.4Mpa. The high speed downward revolution of the fluid can generate great centrifugal force. The heavier solid particles will be thrown to the inner wall of the cyclones. The deeper and smaller the diameter of the cyclone is, the greater the angular velocity of the flowing fluid will be, generating greater centrifugal force.



Drilling mud desilter is used to separate silts from drilling muds. The cut point can be as low as 4“. As muds are being used in drilling operations, they are contaminated with silts. In order to use again these muds, it is necessary to separate silts and also to recycle muds to dispose them at the end of work duty. TR 4”desilter can handle up to 1056 GPM of drilling fluids.



Main Features of TRCN series desilter

  1. Heat treatment on entire deck.
  2. Painting: Heavy anti-corrosion paint.
  3. Inlet and outlet adopt fast joint connection.
  4. International famous brand vibration motor with Martin or OLI.
  5. High strength compound rubber material used to reduce shocking.
  6. Cyclones with high wearing-resisting polyurethane and high-chromium iron.
  7. Electrinic control system from famous brand explosion-proof eletronic switch.


Technical Parameters of Our Mud Desilter



Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.



Large Capacity Drilling Mud Desilter Hydrocyclone Solids Control Equipment 0



Application



TR drilling desilter is widely used in tunneling constructioncity bored piling, oil & gas drillingtrenchless HDDDrilling Waste Management, micro-tunneling, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, mining, environment protection, Oil Mud Seperation, Water Drilling etc



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
