Product Details:
Payment & Shipping Terms:
|
Capacity: | 180m3/h | Cyclone Specs: | 4" |
---|---|---|---|
Cyclone Qty: | 12nos | Working Pressure: | 0.25-0.4Mpa |
Inlet Size: | DN150mm | Outlet Size: | DN200mm |
Specification Point: | 15μm-44μm | Bottom Shaker: | TRZS752 |
Dimension: | 1835*1230*1810mm | Weight: | 1150kg |
Highlight: | dewatering hydrocyclone,hydrocyclone dewatering,polyurethane hydrocyclone |

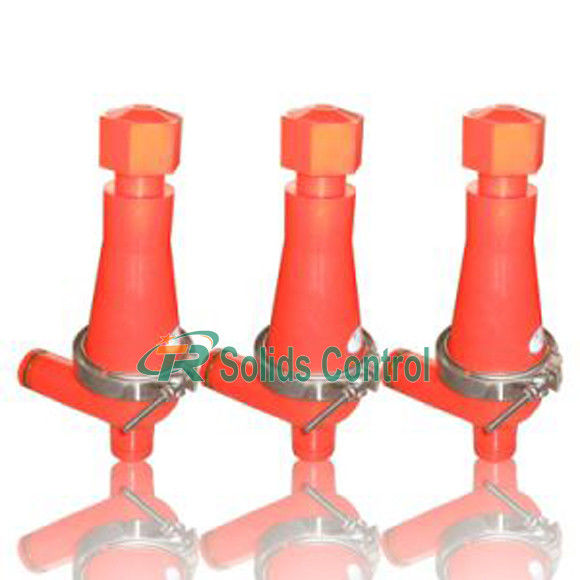

API Drilling Mud Cleaner Desilter Cyclone for Oil & Gas Drilling , China Desilter Cylone Supplier
Introduction
The basic principle of the hydro cyclone is to separate the two-phase or multi-phase mixture of liquid-liquid, liquid-solid, liquid-gas and so on with a certain density under the action of centrifugal force. The mixed liquid is tangentially flowed into the cyclone with a certain pressure, and a high-speed rotating flow field is generated in the cylindrical cavity. The high density components in the mixture under the action of the swirling flow at the same time along the axial downward movement along the radial outward movement in the reach of the force down along the wall along the wall, and from the bottom outlet, thus forming.
The small vortex component moves toward the central axis and forms an upwardly moving internal vortex in the central of the axis, and then is discharged from the overflow port, thus achieving the purpose of two-phase separation. Desilter is the third important solids control facility in drilling mud purification system. It could enhance the performance of drilling mud, and can work together with desander cleaner. Commonly used cone is ”4 or 5” , which separates size of 15-47μm solids particles out from drilling fluids. Desilter is also called Hydrocyclone Desilter on the basis of clients’ handling ability.
Features of TRCN series desilter:
Technical Data of TRCN Series Mud Desilter
Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
Cyclone Specs | 4” | |||
Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
Working Pressure | 0.25-0.4Mpa | |||
Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
Separation Point | 15μm -44μm | |||
Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
Remark | All desilter could be customized without bottom shaker. |
Application
TR mud desilter is currently used in city bored piling, trenchless HDD, oil & gas drilling, tunneling construction, Drilling Waste Management, micro-tunneling, mining, environment protection, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
