| Capacity: | 130m3/h | Motor Power: | 1.72kw*2 |
|---|---|---|---|
| Screen Area: | 2.7m2 | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (585*1165mm)*4pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1600kg |
| High Light: | drilling fluid equipment,shale shaker |
||

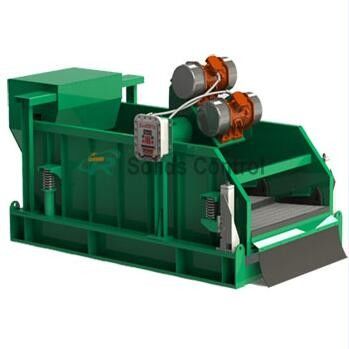

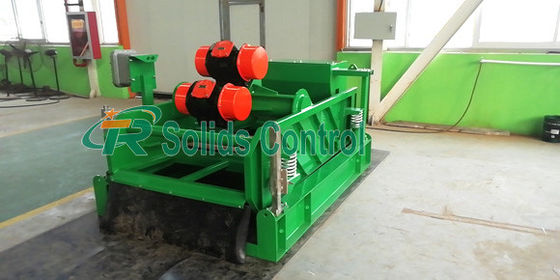

130m³ / H Capacity Linear Motion Shale Shaker With Strong Vibration Strength
Product Introduction
Drying shaker is the first phase equipment to achieve the mud without landing. It can also be used at the first stage of mud recycling system in the oil drilling process. If you want to realize the mud does not fall, single equipment can not be achieved. It requires a variety of equipment combined together and treated systematically.
TR Series drying shaker is a high strength vibrating screen independently in order to meet the domestic and international market demand and environmental protection requirements. Our drying shaker has been used in oil drilling field, shield construction site, city piling site. They could meet a variety of drill cuttings dewatering, screening, purification requirements. They ensure the continuous and effective treatment of the whole drilling shaving slurry, and have been highly recognized by customers.
Main features of our drying shaker
Technical Parameters of TR Shale Shaker
| Mode | TRPS585G | TRZS585G |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion |
| Treatment Capacity | 140m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94KW×2 |
| Screen Specs. | (585×1165mm)×4 | (585×1165mm)×4 |
| Screen Area | 2.7m² | 2.7m² |
| Vibration Strength | ≤8.5G(adjustable) | ≤8.5G(adjustable) |
| Double Amplitude | 7mm | 7mm |
| Deck Adjustment | -3°～+3° | -3°～+3° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |
| Weight | 1618kg | 1700kg |
| Dimension | 2600×1645×1380mm | 2600×1645×1480mm |
Our Advantage
TR Solids Control is API certified Drilling mud fluids solids control equipmentmanufacturer in China.
Own world’s most advanced patent 4th generation BEM shaker.
TR shale shakers have been exported to over 50 countries and regions.
All Facilities total area are over 70,00 squre meters.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
