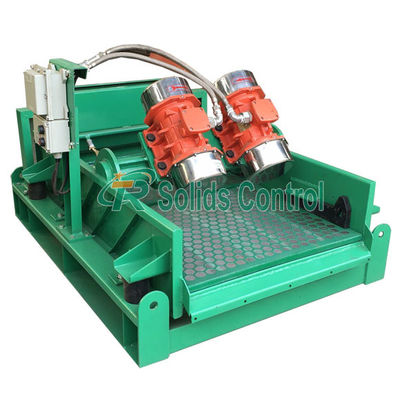

Oil Rig Mud System Linear Motion Shale Shaker , 60m3/h Solids Control Equipment

Oil Rig Mud System Linear Motion Shale Shaker , 60m3/h Solids Control Equipment
Oil Rig Mud System Linear Motion Shale Shaker , 60m3/h Solids Control Equipment
video play

Large Image :  Oil Rig Mud System Linear Motion Shale Shaker , 60m3/h Solids Control Equipment

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRZS752
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30 Sets / Month
Detailed Product Description
Capacity: 60m3/h Vibration Motion: Linear Motion
Motor Power: 0.75kw*2pcs Screen Specs.: (750*900mm)*2pcs
Screen Area: 1.4m2 Vibration Strength: ≤7.1G
Double Amplitude: 5mm Adjustment Angle: -1°-+5°
Ex Standard: ExdllBt4 Dimension: 1835*1280*1200mm
High Light:

shale shaker

,

drilling fluid equipment

Oil Rig Mud System Linear Motion Shale Shaker , 60m3/h Solids Control Equipment



Main Introduction



Drilling shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. It is used widely in mud recovery system of HDD trenchless, oil & gas drilling, shield & bored pile currently.



TR Solids Control can manufacture  balanced elliptical shale shaker, high quality liner shale shaker, drying shale shaker. We can meet customers’ variable requirements. Clients feedback proved the advantages of our shale shaker in international market. Welcome to contact with us for more details.



Advantage of Linear Shale Shaker

  1. AWD device is adjustable from -1°~5°.
  2. Shale shaker feeder can be weir feeder or box feeder.
  3. Hi-speed conveyance of cuttings.
  4. Higher processing capacity.
  5. Able to process heavier solids loads.
  6. Enhances cuttings processing volume.
  7. Single side shale shaker screens tension system to easily change the screens.
  8. G-forces linear motion up to 7.4 G (adjustable depending on the situation).

Main Specification of TR Shale Shaker



Model TRZS703 TRZS2000 TRZS585
Vibrating Model Linear Linear Linear
Motor Power 2×1.5KW 2×1.72KW 2×1.72KW
Vibrating Strength ≤7.0G ≤7.5G ≤7.5G
Amplitude 6.0~7.2mm 6.0~7.2mm
Capacity 527GPM 615GPM 615GPM
Deck Adjustment -1°~5° -1°~5° -1°~5°
Screen of Deck 3 3 4
Electric 380V/50HZ,460V/60HZ or Customized
Decibels <85db <85db <85db
Ex Standard ExdIIBt4 / IEC EX/ ATEX ExdIIBt4 / IEC EX/ ATEX ExdIIBt4 / IEC EX/ ATEX
Dimension 2800X1785X1750 2800X1600X1690 2800X1600X1690
Weight 1550kg 1850kg 1750kg



Oil Rig Mud System Linear Motion Shale Shaker , 60m3/h Solids Control Equipment 0



TR mud shale shaker is popular among our clients. Nowadays it is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling. Our shale shaker has competitive price and high performance. Welcome your inquiry!



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
