Product Details:
Payment & Shipping Terms:
|
| Model: | TRCN100-12N | Capacity: | 180m3/h |
|---|---|---|---|
| Hydrocyclone: | 12nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN150mm | Outlet Size: | DN200mm |
| Separation Point: | 15μm-44μm | Bottom Shaker: | TRZS752 |
| Weight: | 1150kg | Dimension: | 1835*1230*1810mm |
| High Light: | polyurethane hydrocyclone,hydrocyclone dewatering |
||

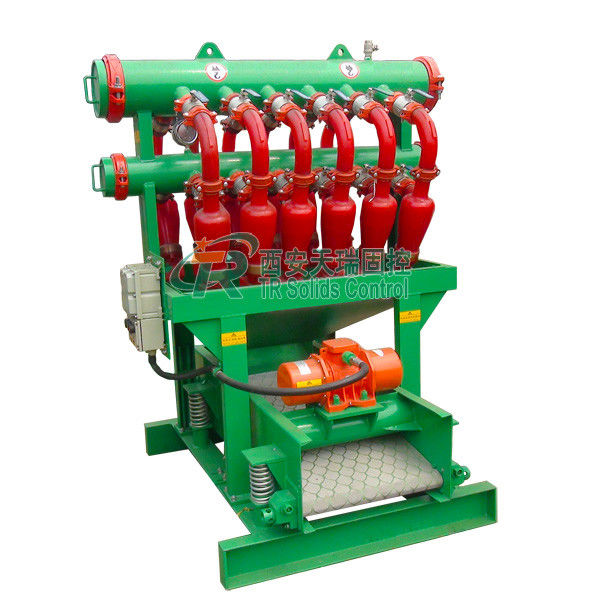

Trenchless HDD Slurry Treatment Drilling Fluids Desilter with High-Chromium Cyclones
Producty Introduction
TR mud desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into Desander and Desilter. Usually the cone diameter is less than 6″ is called Desilter, and used as the third solids control equipment in drilling operation. We commonly used 5 " and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into Desilter.
TRCN Series Mud Desilter works very well with other solids control equipments. Based on customer requirements and capacity, we can select groups of hydrocyclone into desilter. The desilter of TR Solids Control is widely used in oil & gas drilling and horizontal directional drilling.
Features of TRCN Mud Desilter
Technical Data of TRCN Series Mud Desilter
| Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
| Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
| Cyclone Specs | 4” | |||
| Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
| Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
| Separation Point | 15μm -44μm | |||
| Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
| Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
| Remark | All desilter could be customized without bottom shaker. | |||
TR Solids Control is a professional desilter designer and manufacturer in China with rich experience. We will provide our clients high quality product with reasonable price. At the same time we offer good performance desander, mud cleaner, shale shaker, decanter centrifuge, jet mud mixer, vacuum degasser, mud agitator, shear pump, screw pump, centrifugal pump, and mud recycling system for oil & gas drilling, tunnel construction, bored pile project, HDD trenchless etc.
Application in Drilling Solids control
TRCN drilling desilter is currently used in micro-tunneling, mining, environment protection, tunneling construction, oil & gas drilling, city bored piling, trenchless HDD, Drilling Waste Management, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
