| Working Pressure: | ≤3.2Mpa | Diameter: | 80mm |
|---|---|---|---|
| Rotation Angle: | 360° | Nozzle Qty: | 3 Pcs |
| Weight: | 200kg | Key Words: | Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun |
| High Light: | solid control mud gun,drilling rig mud gun |
||

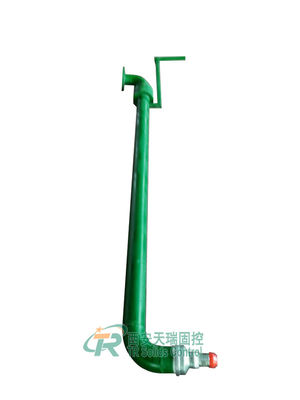

360° Rotation Angle Mud Gun for Circulatory System Mixing , Drilling Mud Gun
Introduction
Mud Guns are designed for submerged service in mud pits and are popular in 2", 3". Besides, 4” is available against client request. They can be high pressure gun, or low pressure, high volume service such as in mud mixing systems employing centrifugal pumps.
TRNJQ mud gun has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. Drilling fluids through the nozzle produce high-speed flow for achieving the purpose of mixing drilling fluids. The pressure and flow rate are transmitted by the high pressure main drilling pump or by centrifugal pumps in most cases.
Application
TRNJQ series mud gun is widely used in city bored piling, trenchless HDD, Drilling Waste Management, oil & gas drilling, tunnelling construction, Water Drilling, Oil Sludge Dewatering Systems, Oil Mud Seperation, Coal Bed Gas Solids Control System, thermal power generation, mining, paper making, municipal projects, coal washing, environment protection, cement plant etc.
Advantages of TRNJQ Series Mud Gun
Technical Data of TRNJQ Series Mud Gun
| Model | TRNJQ50-3 | TRNJQ50-3X | TRNJQ80-3 | TRNJQ80-3X |
| Diameter | 50mm | 50mm | 80mm | 80mm |
| Working Pressure | ≤6.4MPa | ≤3.2MPa | ≤6.4MPa | ≤3.2MPa |
| Nozzle No. | 1/3e | |||
| Rotation Angle | N/A | 360° | N/A | 360° |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
