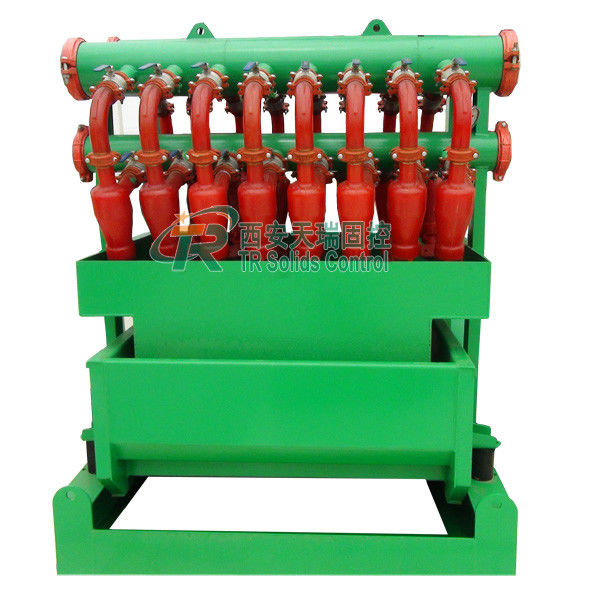

180m3/h Polyurethane Hydrocyclone System , Multi - Function Mud Desilter

180m3/h Polyurethane Hydrocyclone System , Multi - Function Mud Desilter
180m3/h Polyurethane Hydrocyclone System , Multi - Function Mud Desilter 180m3/h Polyurethane Hydrocyclone System , Multi - Function Mud Desilter

Large Image :  180m3/h Polyurethane Hydrocyclone System , Multi - Function Mud Desilter

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRCN100-12N
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20 Sets / Month
Detailed Product Description
Model: TRCN100-12N Capacity: 180m3/h
Hydrocyclone: 12nos Working Pressure: 0.25-0.4Mpa
Inlet Size: DN150mm Outlet Size: DN200mm
Separation Point: 15μm-44μm Bottom Shaker: TRZS752
Weight: 1150kg Dimension: 1835*1230*1810mm
High Light:

dewatering hydrocyclone

,

hydrocyclone dewatering

Mining Produce Widely Used TRCN100-12N Mud desilter with Excellent Hydrocyclones

Introduction



TRCN100-12N mud desilter is completed with 100mm polyurethane hydrocyclones, mud trough, manifold, motor, shale shaker, base and all necessary connections.The upper part of hydrocyclone is cylindrical with a tangential suction tube and a overflow tube in center. The lower part of hydrocyclone is cone with bottom silt discharge tube. The upper part and lower part are connected by hoop.



As a solids control equipment of the third class in drilling operation, mud desilter is used to remove solid particles of 20-40 µm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results. Its cyclone is of long service life and stable performance. It is applicable to various kinds of drills in oilfield.



Features of TRCN Mud Desilter



  1. Heat treatment on entire deck.
  2. Painting: Heavy anti-corrosion paint.
  3. High strength compound rubber material used to reduce shocking.
  4. Inlet and outlet adopt fast joint connection.
  5. Electrinic control system from famous brand explosion-proof eletronic switch.
  6. Cyclones with high wearing-resisting polyurethane and high-chromium iron.
  7. International famous brand vibration motor with Martin or OLI.


Technical Data of TRCN Series Mud Desilter



Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.


180m3/h Polyurethane Hydrocyclone System , Multi - Function Mud Desilter 0

Application in Drilling Solids control

Our mud desilter is currently used in
micro-tunneling, oil & gas drilling, city bored piling, Drilling Waste Management, Oil Sludge Dewatering Systems, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, mining, tunneling constructionOil Mud Seperation, Water Drilling etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
