Product Details:
Payment & Shipping Terms:
|
Motor Power: | 15kw | Impeller Speed: | 60/72r/min |
---|---|---|---|
Impeller Diameter: | 950mm | Impeller Qty: | 2pcs |
Ex Standard: | ExdIIBt4/IECEX/A-TEX | Dimension: | 1330*890*747mm |
Weight: | 480kg | Key Words: | High Quality Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time |
Highlight: | 15kw Mud Tank Agitator,API Oil Drilling Mud Agitator,Solids Control System Drilling Mud Agitator |

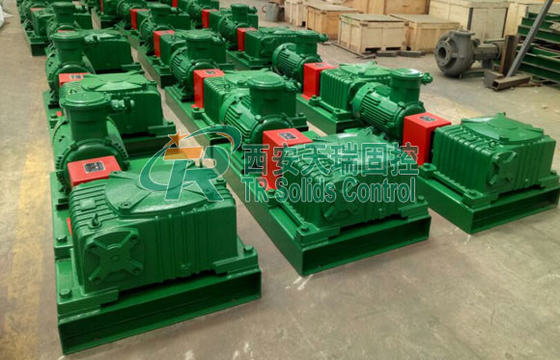

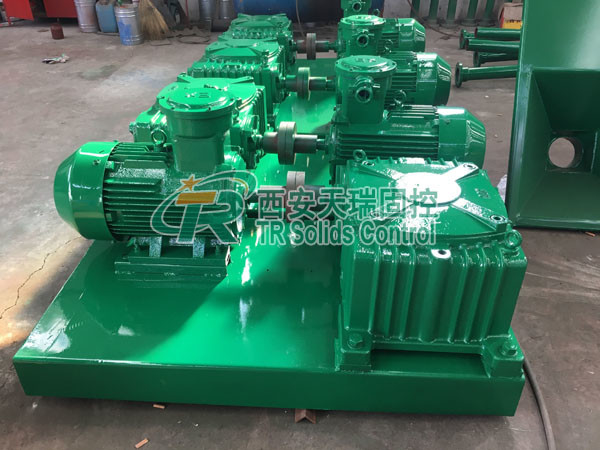

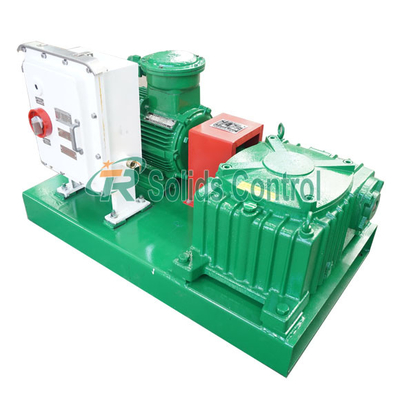

API Good Performance Oil Drilling Mud agitator in Solids Control System
Introduction
Main Characterstics of TRJBQ Mud Agitator:
Specifications of Drilling Mud Agitator
Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 |
ExdIIBt4/IECEX/A-TEX |
190kg | 909×525×527mm |
TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
Remark | Above weight and dimension exclude mud agitator shaft. |
Main Applications
TRJBQ series mud agitator is currently used in Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, Coal Bed Gas Solids Control System, environment protection, trenchless HDD, micro-tunneling, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc. Our mud agitators have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
