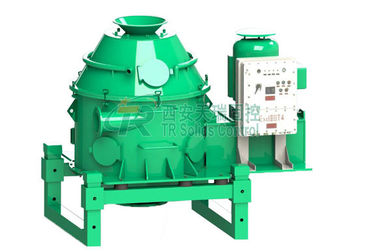

Large Image :  "Efficiently Manage Drilling Waste with TRCD Vertical Cutting Dryer: Advanced Design, High Recovery Ratio,

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRCD930B-VFD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 30 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 2000 Sets Per Month
Detailed Product Description
Capacity: 30-50T/h Basket Diameter: 930mm
Basket Gap: 0.25-0.5mm Rotary Speed: 0-900r/min
Air Inlet Pressure: 0.69MPa Air Tool Air Supply: 1.8m3/min
Fuel Tank Volume: 60L Main Motor Power: 55kw
Oil Pump Power: 0.55kw Dimension: 2750*2130*1800mm

30-50T/H Drilling Fluids Vertical Cutting Dryer for Oil and Gas Drilling

Product Introduction

Mud vertical cutting dryer is a type of drying machine for treating sludge in drilling waste management. It can be called vertical centrifuge from structure. It is
characterized by advanced design, efficient treatment and long service life. Vertical cutting dryer belongs to environmental equipment among mud solids control equipment.


Vertical cutting dryer is a very important solids control equipment in drilling waste management field. It can deal with large numbers of waste sediment efficiently and fastly, and reduce oil and water content in drilling cuttings effectively. After treatment, the oil content (OOC) of cuttings is below 5%. They are up to international drilling fluid cuttings discharge standard, and meet the increasingly stringent environmental protection requirements.

What's more, vertical cutting dryer can recover a large proportion of synthetic slurry and oil-based mud, effectively reducing waste emissions. Meanwhile it improves the use of waste. TRCD series vertical cutting dryer can recover the oil cuttings in the composition, and processing capacity can arrive 30-50 tons per hour, oil content in drilling cuttings after treatment is generally less than 3%.

Advantages of TRCD Series Vertical Cutting Dryer



  • Every changeable selected parts pass dynamic balance test, meeting the balance of the complete machine;
  • Reduces waste-disposal volumes;
  • The highest rotary speed is 900 rpm. It could form 420 G separation factor, and separates the fluid in drilling waste effectively;
  • Assembled with air knife, making it prevent basket from blocking;
  • Advanced design and efficient capacity.
  • Discharging scraper is made from high chromium cast iron, with long service time;
  • Independent oil cooling system, matched with scientific oil tank cooling system. Making it meet operating requirement in high temperature environment.


Technical Data of TRCD Series Vertical Cutting Dryer



Model TRCD930C TRCD930B-VFD
Treatment Capacity(T/h) 30-50T/h
Basket Max.Diameter 930mm
Basket Gap 0.25-0.5mm
Rotary Speed 900 r/min 0-900 r/min
Air knife Air Inlet Pressure 0.69Mpa
Air Tool Air Supply 1.8m3/min
Fuel Tank Volume 60L
Main Motor Power(Kw) 55Kw
Oil Pump Power(Kw) 0.55Kw
Weight 5900kg 6000kg
Dimension 2750*2130*1800mm


"Efficiently Manage Drilling Waste with TRCD Vertical Cutting Dryer: Advanced Design, High Recovery Ratio, 0



Application

Offshore and onshore projects where the recovery of valuable drilling fluid from cuttings, as well as recovery of whole mud lost from shale shaker failure, rig motion and screen blinding are priorities.

Competitive Advantages


1. We offer high quality products at competitive price.
2. S
hortest delivery time
.
3. Flexible payment terms.

4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
