Product Details:
Payment & Shipping Terms:
|
| Specification: | 3740× 420× 785mm | Weight: | 875kg |
|---|---|---|---|
| Type: | Screw Pump | Operation Pressure: | Atmospheric Pressure |
| Usage: | Pump | Application: | Oil & Gas Drilling |
| High Light: | Drilling Waste Management Rotary Screw Pump,Screw Type Oilfield Pump,Drilling Oilfield Screw Pump |
||

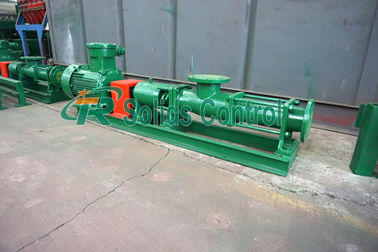

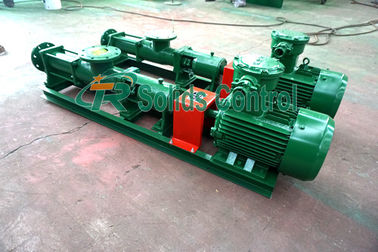

High Performance Oilfield Screw Pump for Drilling Waste Management
Main Introduction
TRG series screw pumps have the characteristics of few accessories, compact structure, convenient maintenance and replacement of wearing parts. Except for the drilling fluid centrifuge, the rated pressure of the pump outlet of our company can increase with the increase of the pump series, and the pressure can be increased by 0.6MPa, so its application range is very wide.
The screw pump is divided into a sealing group and a bearing housing group by suction, extraction, working parts (rotor and stator), transmission parts, and universal joints. The working part is composed of rotating eccentric rotor and stator. The rotor and stator have two contact points per cross section. These contact points come from two densified lines along the working part of the rotor (or stator). Thereby enter one or several one packed bears when the rotor rotates. The introduction into the airtight bag is discharged along the airtight bag from the suction end to the discharge. During the whole operation process, the pressure pulsation is very small and has no influence on the internal structure of the pumped medium.
Why Choose TRG Series Screw Pump?
1. Shaft of the pump is made from stainless steel.
2. Large working speed range. Flow and pressure can be adjustable.
3. Rotor and stator are vulnerable parts. They are easy to replace.
4. Less accessories, compact structure and easy maintenance.
5. Stable flow rate and pressure. No pulse.
6. High suction height, low noise. No leakage, no temperature rise when conveying liquid.
7. Long operational life with reliable performance.
8. Wide application range. Can convery all flowable media.
Main Specifications of TRG Series Screw Pump
| Model | Flow Rate | Pressure | Power |
Inlet (Inch) |
Outlet (Inch) |
Ex Standard |
Weight (Kg) |
Dimension |
| TRG10A-040 | 10m³/h | 0.3Mpa | 4kw | 3 | 3 | ExdIIBt4/IECEX/A-TEX | 245 | 2245×320×550mm |
| TRG20A-055 | 20m³/h | 5.5kw | 3 | 3 | 323 | 2450×340×562mm | ||
| TRG30A-075 | 30m³/h | 7.5kw | 4 | 4 | 386 | 2761×370×600mm | ||
| TRG40A-110 | 40m³/h | 11kw | 5 | 5 | 454 | 3270×370×665mm | ||
| TRG50A-110 | 50m³/h | 11kw | 5 | 5 | 608 | 3790×400×782mm | ||
| TRG60A-150 | 60m³/h | 15kw | 5 | 5 | 649 | 3322×550×740mm | ||
| TRG70A-220 | 70m³/h | 22kw | 6 | 6 | 875 | 3740×420×785mm | ||
| TRG80A-220 | 80m³/h | 22kw | 6 | 6 | 875 | 3740×420×785mm | ||
| TRG90A-220 | 90m³/h | 22kw | 6 | 6 | 875 | 3740×420×785mm |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
