Payment & Shipping Terms:
|Basket Gap:||0.25-0.5mm||Rotary Speed:||0-900r/min|
|Air Inlet Pressure:||0.69MPa||Air Tool Air Supply:||1.8m3/min|
|Fuel Tank Volume:||60L||Main Motor Power:||55kw|
|Oil Pump Power:||0.55kw||Dimension:||2750*2130*1800mm|
Frequency Conversion Vertical Cutting Dryer,

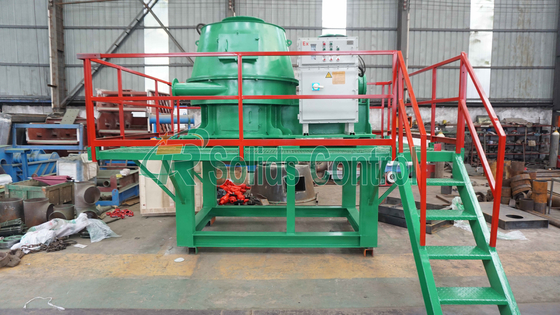

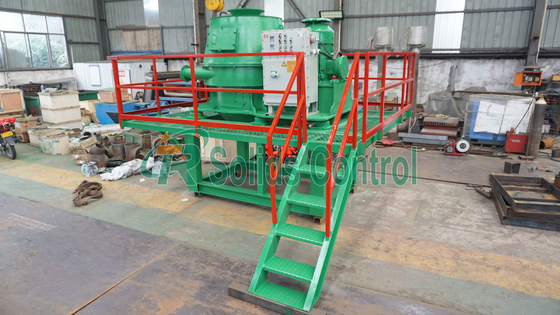

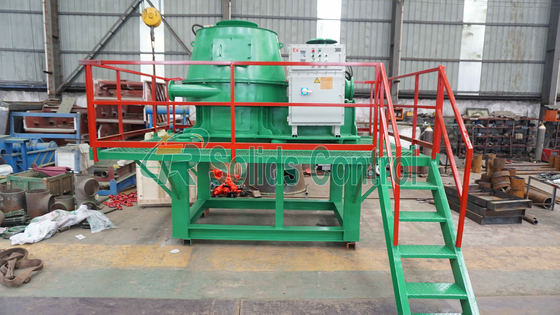

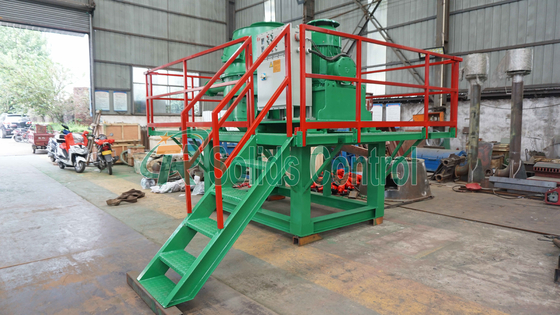

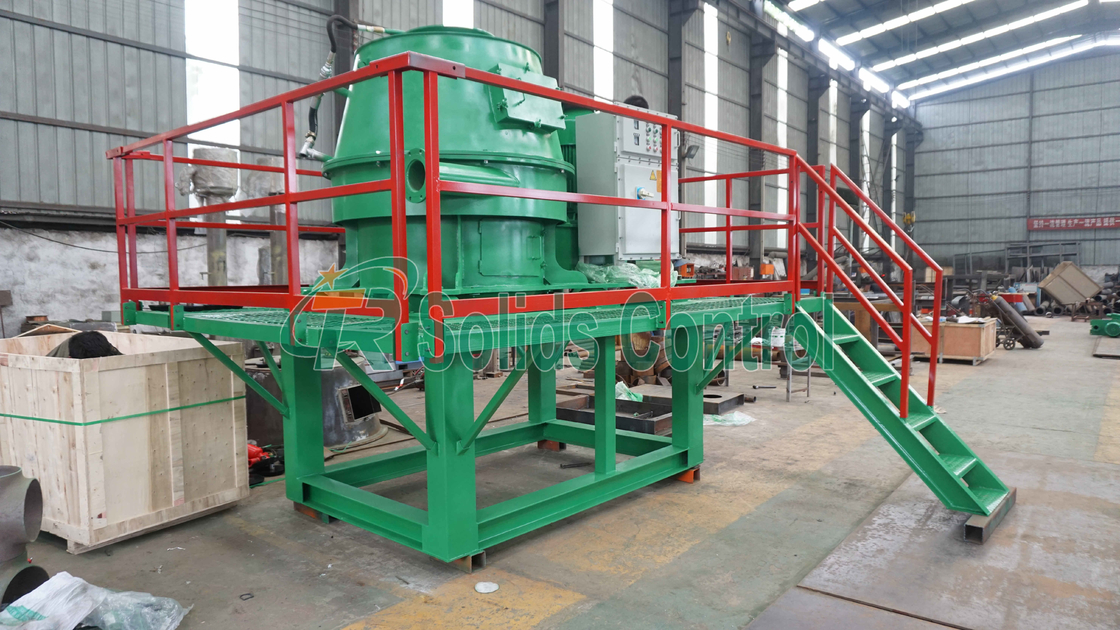

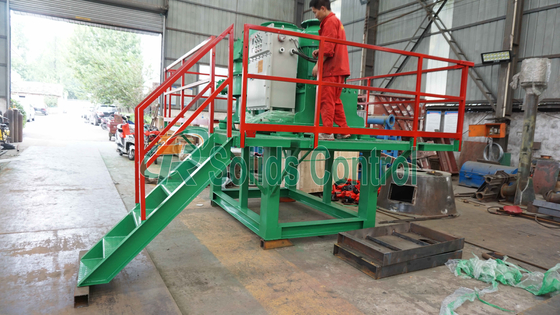

Guardrail Stairs Vertical Cutting Dryer,
Walkways Cutting Centrifuge Dryer
Recycling Drilling Fluids Vertical Cutting Dryer for Sale / Mud Vertical Cutting Dryer
Drilling fluids vertical cutting dryer is a kind of drying machine for treating slurry in oilfield. It can be called vertical centrifuge from its structure. It is characterized by advanced design, efficient treatment and long service life. Vertical cutting dryer belongs to a kinds of environmental equipment among oilfield mud solids control equipment.
Vertical cutting dryer is a very important solids control equipment in drilling waste management. It can deal with a large numbers of waste sediment efficiently and fastly, and reduce oil and water content of the cuttings effectively. After treatment, the oil content (OOC) of cuttings is below 5%. They are up to the international drilling fluid cuttings discharge standard, and meet the increasingly stringent environmental protection requirements.
Vertical cuttings dryer could be regarded as a vertical centrifuge, the discharged cuttings transfered by the auger get into the Vertical cuttings dryer from the opening on the top, under the function of centrifugal force produced by rotation of the screen module. Liquid flow out from the opening at the flank side while the solids discharged out from the outlet at the bottom of the cuttings dryer.vertical cuttings dryer moisture percentage, 6-10%, that means there is no flowing water, so it could be transported easily.
Our TRCD vertical cutting dryer is mainly used in Oil and Gas Drilling, Drilling Waste Management, Trenchless HDD & Tunnelling, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil Mud Seperation, Bored Pile.
Key Featured of TRCD Series Vertical Cutting Dryer
Specifications of TRCD Series Vertical Cutting Dryer
|Rotary Speed||900 r/min||0-900 r/min|
|Air knife Air Inlet Pressure||0.69Mpa|
|Air Tool Air Supply||1.8m3/min|
|Fuel Tank Volume||60L|
|Main Motor Power(Kw)||55Kw|
|Oil Pump Power(Kw)||0.55Kw|
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Customer's satisfaction is the highest pursuit of TR Solids Control.
Contact Person: sunny
