| Size: | 5 1/2" -13 3/8" | Length: | 1460-2360 Mm |
|---|---|---|---|
| Manifold: | 2" 1502 Union | Length Of Plug Container: | 400-600mm |
| Working Pressure: | 21-35.5Mpa | Material: | AISI 4145H Alloy Steel |
| Thread: | LTC,STC,BTC And Premium Thread | Color: | Red, Blue, Green |
| High Light: | Cement Head Drill Spare Parts,Oilfield Single Valve Drill Spare Parts,AISI 4145H Cementing Head |
||

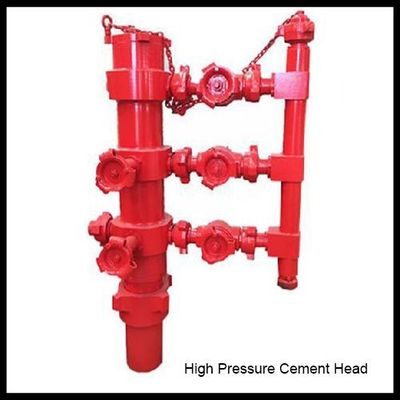

API 5CT Oilfield Drilling Tool Single Valve Cement Head
Product Descrption

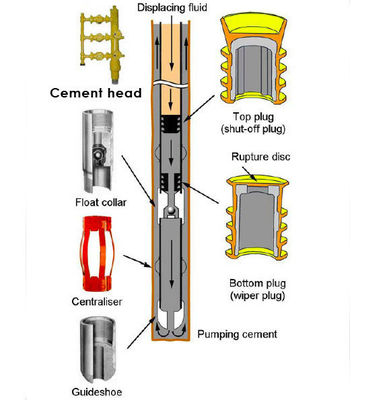

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line. We could supply both type of Cementing Head, Single Plug or Double Plug and available sizes are 4 ½" to 13 3/8".

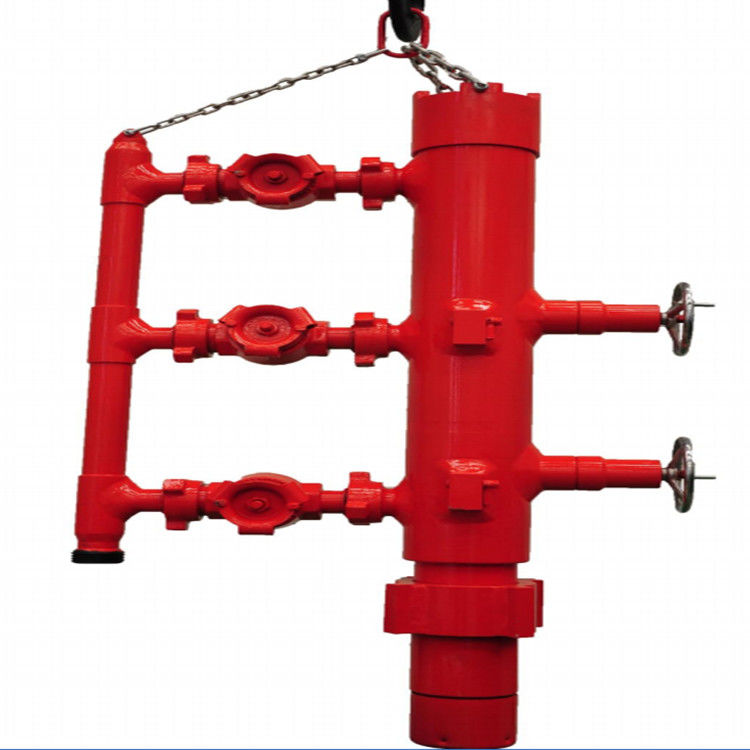

Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.
Product Benefits of Oilfield Cement Head
Technical Data Sheet of Double Plug Cement Head
| Specifications (in) | 5 1/2" | 7" | 7 5/8" | 9 5/8" | 10 3/4" | 13 3/8" |
| Overall Length (mm) | 1950 | 2020 | 2360 | 2360 | 2440 | 1780 |
| Manifold | 2" 1502 Union | |||||
| ID of Plug Container (mm) | Φ125 | Φ175 | Φ225 | Φ250 | Φ320 | ø 320 |
| Length of Plug Container (mm) | 400 | 450 | 550 | 550 | 600 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35 | 21 |
Technical Data Sheet of Single Plug Cement Head
| Specifications (in) | 5 1/2" | 6 5/8" | 7" | 7 5/8" | 9 5/8" | 10 3/4" | 13 3/8" |
| Overall Length (mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2" Union | ||||||
| ID of Plug Container (mm) | ø125 | ø 150 | ø 160 | ø 175 | ø 225 | ø 250 | ø 320 |
| Length of Plug Container(mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 | 35 |
