Product Details:
Payment & Shipping Terms:
|
| Size: | 5 1/2" -13 3/8" | Length: | 1460-2360 Mm |
|---|---|---|---|
| Manifold: | 2" 1502 Union | ID Of Plug Container: | 125-320mm |
| Length Of Plug Container: | 400-600mm | Working Pressure: | 21-35.5Mpa |
| Type: | Single & Double Plug Cement Head | Usage: | Well Drilling |
| High Light: | Oilfield Double Plug Cementing Head,1460mm Length Cementing Head,API Single Plug Cementing Head |
||

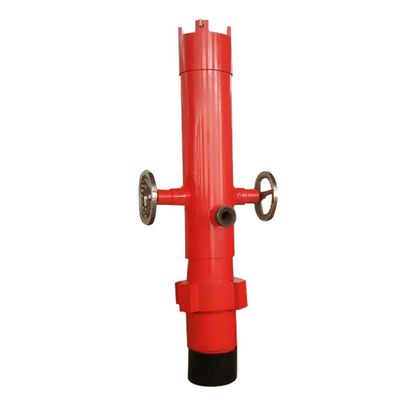

Oilfield Accessories Single and Double Plug Cement Head
Product Descrption
Cementing head is a kind of special tool to pump slurry and release plug. It is used to fill drilling fluid into casing in turn and quickly. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement head after the spacer fluid. Most cement heads can hold both the top and bottom plugs. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.

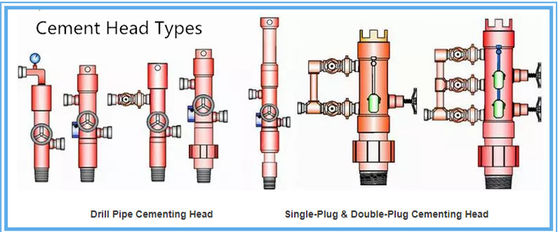

The types of cementing head are various as single-plugs, double plugs cementing head and so on. Double plug cement head is a special tool for grouting cement and releasing rubber plugs. Two rubber plugs can be installed at the same time, which can be used for both conventional double plug cementing and continuous two-stage cementing.
Product Characterstics of Oilfield Cement Head
Parameters of Double Plug Cement Head
| Specifications (in) | 5 1/2" | 7" | 7 5/8" | 9 5/8" | 10 3/4" | 13 3/8" |
| Overall Length (mm) | 1950 | 2020 | 2360 | 2360 | 2440 | 1780 |
| Manifold | 2" 1502 Union | |||||
| ID of Plug Container (mm) | Φ125 | Φ175 | Φ225 | Φ250 | Φ320 | ø 320 |
| Length of Plug Container (mm) | 400 | 450 | 550 | 550 | 600 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35 | 21 |
Parameters of Single Plug Cement Head
| Specifications (in) | 5 1/2" | 6 5/8" | 7" | 7 5/8" | 9 5/8" | 10 3/4" | 13 3/8" |
| Overall Length (mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2" Union | ||||||
| ID of Plug Container (mm) | ø125 | ø 150 | ø 160 | ø 175 | ø 225 | ø 250 | ø 320 |
| Length of Plug Container(mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 | 35 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city of China. We have the specialized technicians,senior engineers and professional marketing team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments. The main products include: Petroleum equipments & tools such as drilling equipments & spare parts, production equipments, tubular goods, wellhead equipments, downhole equipments, solid control equipments, wellhead equipments & tools, downhole tools, tubular products etc.; Petrochemicals. We have established a complete quality control system, all products & equipments manufactured as per international standard and API standard.
Warmly welcome customers home and abroad to visit our company and give us valuable suggestions. We would like to have long term cooperation with customers from all over the world on the basis of mutual prosperity and development.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
