Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2"

Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2"
Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2" Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2" Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2"

Large Image :  Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2"

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSNT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pcs per month
Detailed Product Description
Size: 5 1/2" -13 3/8" Length: 1460-2360 Mm
Manifold: 2" 1502 Union ID Of Plug Container: 125-320mm
Length Of Plug Container: 400-600mm Working Pressure: 21-35.5Mpa
Type: Single Plug Cement Head Material: Carbon Steel
High Light:

Oilfield Single Plug Cement Head

,

Carbon Steel Single Plug Cement Head

,

35.5Mpa Single Plug Cement Head

Oilfield Cementing Single Plug Casing Cement Head 5 1/2"



Product Descrption



The Cement Head is a special tool for pumping slurry and releasing plug. It makes the drilling fluid fill into casing in turn and quickly. The casing cement-head with double plugs (called as cement-head ) is a common cementing tool used as wellhead unit in all kinds of cementing operation. Comparing to cement-head with single plug, it owns longer cement-head body , and upper rubber plug and lower rubber plug can be put in at same time. The tool owns some advantages such as simple construction, easy operation, high pressure resistant, manifold in common use, flexible in connecting. Especially, the lever type indicator can shows whether rubber plug goes through double plugs cement-head to enter casing so that operator can determine easily.

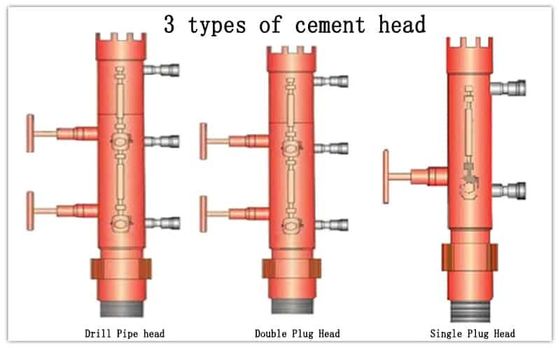

The types of cementing head are various as single-plugs, double plugs cementing head and so on. Double plug cement head is a special tool for grouting cement and releasing rubber plugs. Two rubber plugs can be installed at the same time, which can be used for both conventional double plug cementing and continuous two-stage cementing.



Main Advantages of Oilfield Cement Head



  1. Quick-latch adapter is designed to offer easier, faster and safer makeup for cementing casing.
  2. Able to couple with two plugs simultaneously. Simplify the cementing operation and prevent cement pollution.
  3. Positive lever indicates plug releasing.
  4. Balance pipe is developed.



Product Parameters of Double Plug Cement Head



Specifications (in) 5 1/2" 7" 7 5/8" 9 5/8" 10 3/4" 13 3/8"
Overall Length (mm) 1950 2020 2360 2360 2440 1780
Manifold 2" 1502 Union
ID of Plug Container (mm) Φ125 Φ175 Φ225 Φ250 Φ320 ø 320
Length of Plug Container (mm) 400 450 550 550 600 600
Working Pressure (Mpa) 35.50 35.50 35.50 35.50 35 21



Product Parameters of Single Plug Cement Head



Specifications (in) 5 1/2" 6 5/8" 7" 7 5/8" 9 5/8" 10 3/4" 13 3/8"
Overall Length (mm) 1460 1500 1500 1550 1750 1750 1780
Manifold 2" Union
ID of Plug Container (mm) ø125 ø 150 ø 160 ø 175 ø 225 ø 250 ø 320
Length of Plug Container(mm) 400 450 450 450 550 550 600
Working Pressure (Mpa) 35.50 35.50 35.50 35.50 35.50 35 35



Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2" 0



In recent years, the company products are not only sold well in domestic market but also exported to different countries and areas in the world. Our products are very popular in the overseas market. A number of overseas well-known enterprises have established a long-term business relationship with us.



Warmly welcome customers home and abroad to visit our company and give us valuable suggestions. We would like to have long term cooperation with customers from all over the world on the basis of mutual prosperity and development.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
