Product Details:
Payment & Shipping Terms:
|
| Usage: | Oil Well Drilling | Model: | TQ340-35 |
|---|---|---|---|
| Size Range: | 4 1/2"~13 3/8" | Max. Pressure: | 20 Mpa |
| Material: | Carbon/Alloy Steel | Air Pressure: | 0.5~0.9 Mpa |
| Flow Working: | 110~160 L/Min | Max. Torque Of Hi. Gear: | 2.5~3 KN.m |
| High Light: | Casing Power Oilfield Tongs,API 7K Oilfield Tongs,Drill Pipe Oilfield Tongs |
||

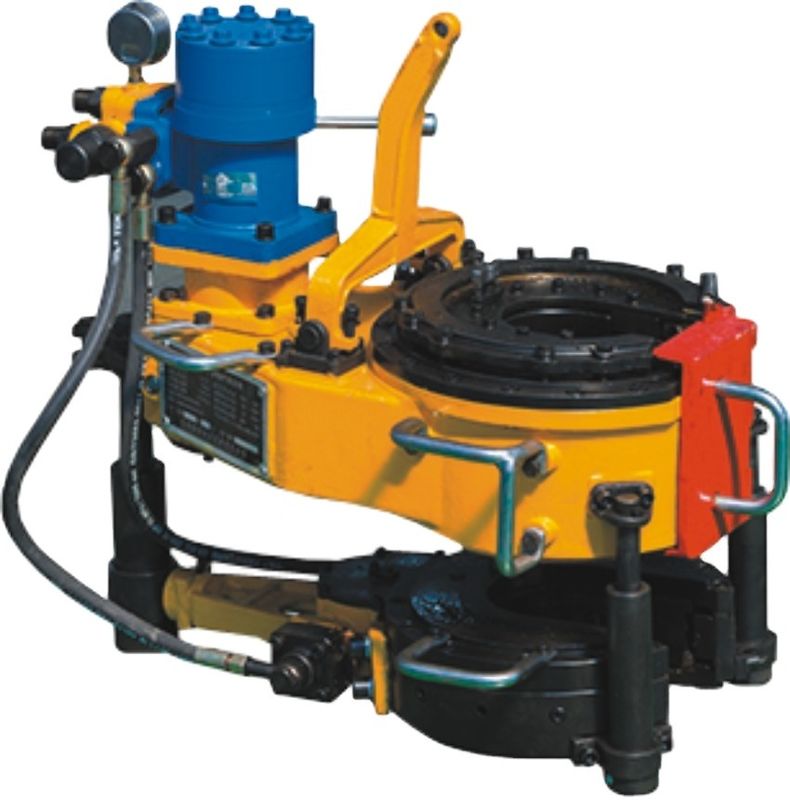

API 7K TQ340-35 Casing Power Tongs for Drilling Rig
Product Descrption

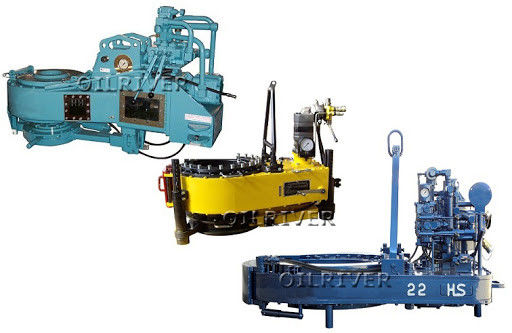

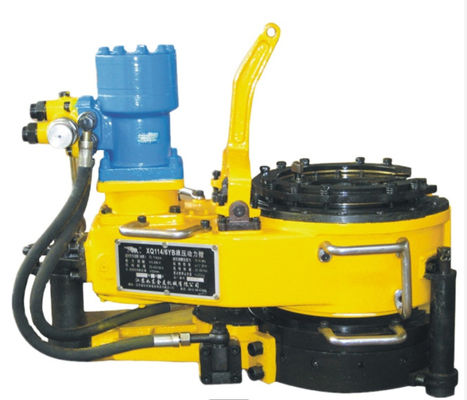

Hydraulic power tong is an open type power tong which is used to lift and discharge oil pipe, casing pipe, drill pipe and similar screw thread pipe column in oil filed well service. This power tong features impact structure, convenient operation, reliable performance, good durability, wide applications and large output torque. With this product, the labour intensity of workers can be lowered, besides, the working efficiency and oil service quality can be increased.
TQ series casing power tong driven by hydraulic motor, can hold the Φ140~Φ340 (51/2~133/8in) pipe string; it can hold Φ340~Φ406(133 by replacing the ring gear and jaw plate /8~16in) of the pipe column, the pipe column of Φ101~Φ140 (4~51/2in) is clamped by the additional jaw plate. Casing power clamp arm 813 (32in), torque value is 35kN·m (25000 ft·lb). Products are designed and manufactured according to API Speck 7K specifications.
Main Features of Oilfield Hydraulic Power Tong
Prouduct Data of Oilfield Hydraulic Power Tong
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang |
mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
23/8 coupling -5body |
23/8 coupling-31/2body |
|
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 |
1700 *1000 *1400 |
1700* 1000 *1400 |
1750* 1650 *2050 |
1570* 800 *1190 |
1110* 790 *820 |
| in | 68* 41*69 |
67* 39*55 |
67* 39*55 |
69* 65*81 |
62* 31*47 |
44* 31*32 |
|
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
Our Team
Xi'An TianRui Petroleum Machinery Equipment Company Limited, established in 2010 and located in Xi'an city, Shaanxi Province of China, covers an area of more than 330 million square meters. Our main products include: oilfield drilling rig and workover rig and their parts, mud pump spare parts, wellhead tools, downhole tools, cementing tools, BOP and spare parts, solid control equipment.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
