Product Details:
Payment & Shipping Terms:
|
| Usage: | Oil Well Drilling | Size: | 2 3/8"-8 5/8" |
|---|---|---|---|
| Max. Torque: | 125~25Knm | Warranty: | 12 Months |
| Working Flow: | 114-120 L/Min | Material: | Carbon/Alloy Steel |
| Backup Tong: | Included | Color: | Red, Yellow, Customized |
| High Light: | Oilfield Drill Spare Parts,5/8" Hydraulic Power Tong,120L/Min Hydraulic Power Tong |
||

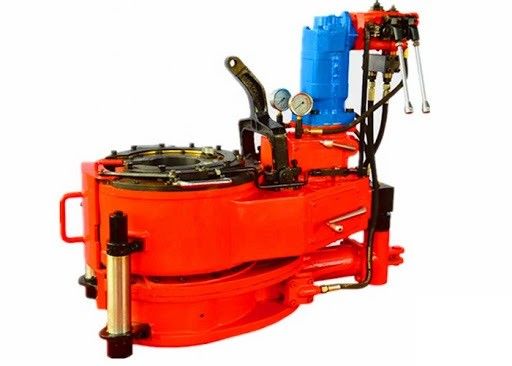

Oilfield Drill Pipe Hydraulic Power Tong Size 2 3/8"-8 5/8"
Product Descrption

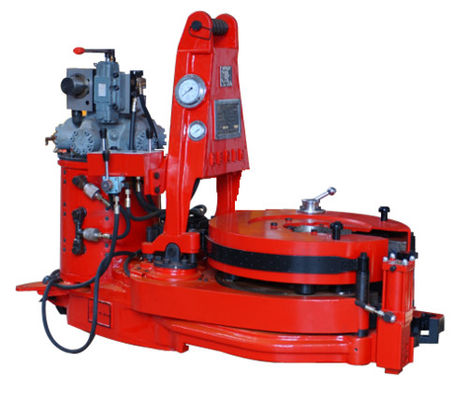

Hydraulic power tong is an open type power tong which is used to lift and discharge oil pipe, casing pipe, drill pipe and similar screw thread pipe column in oil filed well service. This power tong features impact structure, convenient operation, reliable performance, good durability, wide applications and large output torque. With this product, the labour intensity of workers can be lowered, besides, the working efficiency and oil service quality can be increased.

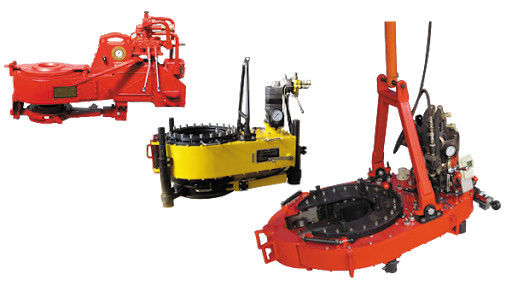

This series power tong is used for quick make-up/break-up in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. This series power tong are designed and manufactured according to industrial standard SY/T5074 and API Spec 7k “Specification for Drilling and well servicing Equipment".
Strengths of Oilfield Hydraulic Power Tong
Technical Data of Oilfield Hydraulic Power Tong
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang |
mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
23/8 coupling -5body |
23/8 coupling-31/2body |
|
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 |
1700 *1000 *1400 |
1700* 1000 *1400 |
1750* 1650 *2050 |
1570* 800 *1190 |
1110* 790 *820 |
| in | 68* 41*69 |
67* 39*55 |
67* 39*55 |
69* 65*81 |
62* 31*47 |
44* 31*32 |
|
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
Our Service
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by Dongying Robust at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, Dongying Robust will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
