Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2"~8" | Type: | Rig Tongs |
|---|---|---|---|
| Rated System Pressure: | 16Mpa | Usage: | Oil Well Drilling |
| Maxiumum Flow: | 114L/Min | Rated Torque Of High Gear: | 9500N.m |
| Rated Troque Of Low Gear: | 100000N.m | Warranty: | 12 Months |
| High Light: | Oilfield Drilling Tongs,16Mpa Oilfield Drilling Tongs,Solids Control Drilling Tongs |
||

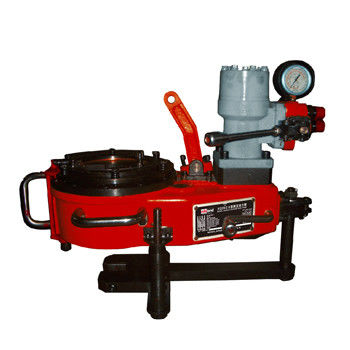

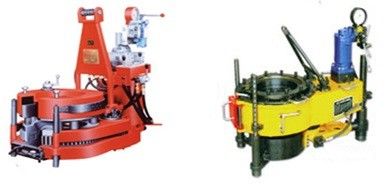

Oilfield Drilling Hydraulic Power Tong Drill Rig Tongs
Product Descrption
Hydraulic power tong are designed and manufactured according to API Spe 7K"specification for drilling equipment". It is a combination of spinning tong and torque tong. It substitutes cathead, suspension tong and spinning rope in making-up and breaking out.
TQ Casing Tongs are safe, reliable, and easy to handle with high mobility. This series of tongs can be connected to computer controlling units and can serve as ideal well mechanical tool for surface operations in oil fields. National Invention Patent of the tong has been got.
This series power tong is used for quick make-up/break-up in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. This series power tong are designed and manufactured according to industrial standard SY/T5074 and API Spec 7k “Specification for Drilling and well servicing Equipment".
Product Benefits of Oilfield Hydraulic Power Tong
Technical Specifications of Oilfield Hydraulic Power Tong
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang |
mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
23/8 coupling -5body |
23/8 coupling-31/2body |
|
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 |
1700 *1000 *1400 |
1700* 1000 *1400 |
1750* 1650 *2050 |
1570* 800 *1190 |
1110* 790 *820 |
| in | 68* 41*69 |
67* 39*55 |
67* 39*55 |
69* 65*81 |
62* 31*47 |
44* 31*32 |
|
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
Package & Shipment
Package: Seaworthy package (or as customer require)
MOQ: 1 Pieces
Delivery: 30 days (can be short if we have stock)
Payment: 30%T/T in advanced+70% balanced;irrevocable L/C at sight
Remarks: All-risk insurance and accept the third party test
Port: Tianjin/Qingdao/Shanghai
