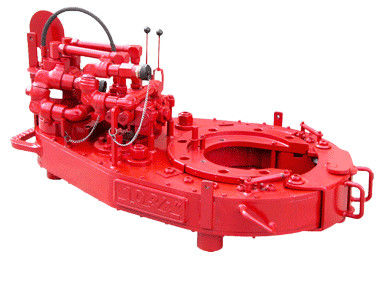

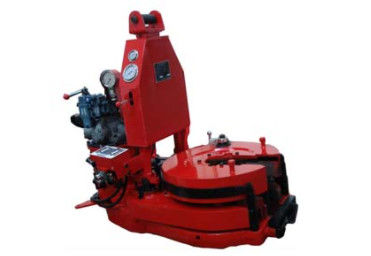

ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield

ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield
ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield

Large Image :  ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZQ, TRTQ, TRXQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 7000 pcs per month
Detailed Product Description
Size: 3 1/2"~8" Advantage: High-efficiency
Processing Type: Casting, Forging Type: Hydraulic
Rated System Pressure: 16Mpa Usage: Oil Well Drilling
Maxiumum Flow: 114L/Min Rated Torque Of High Gear: 9500N.m
High Light:

Oilfield Drill Pipe Tongs

,

16Mpa Hydraulic Drill Pipe Tongs

,

114L/Min Drill Pipe Tongs

ZQ203/100 Hydraulic Power Tong for Oilfield Drilling



Product Descrption



Hydraulic power tong are designed and manufactured according to API Spe 7K"specification for drilling equipment". It is a combination of spinning tong and torque tong. It substitutes cathead, suspension tong and spinning rope in making-up and breaking out.



We operate various businesses with self-confidence and unity business philosophy, and are determined to provide customers with the highest quality cementing manifold, High Pressure Drilling Fluids Manifolds, TCI tricone rock bit and services. We will uphold the pragmatic style of 'constantly push ourselves and pursue excellence', always firming up our service commitments to customers, thus achieving sustainable development of the company. We continue to innovate technology around enhancing customer value. We adhere to the honest, efficient, practical win-win running mission and people-oriented business philosophy. In today's increasingly progressive technology, our company constantly increases the investment in research and development technology, speeds up the pace of research and development system construction.



Product Benefits of Oilfield Hydraulic Power Tong



  1. Our power tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.
  2. Drill pipe power tong is a ideal well head tool for oil drilling apparatus,
  3. Widely applied in making-up and breading-out in drilling well and repairing well on offshore and land, open-throat design of the XQ series allows the tongs to escaping from drilling pipe freely with high mobility.
  4. The tong is a combination of spinning tong and torque tong. It substitutes cathead manual tong and spinning rope in making-up and breaking-out.



Technical Sheet of Oilfield Hydraulic Power Tong



Model ZQ203-125 ZQ203-100 ZQ203-100A ZQ203-100B ZQ162-50 ZQ127-25
Size
rang
mm 127-203 121-203 121-203 121-203 85-162 65-127
in 31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
23/8
coupling
-5body
23/8
coupling-31/2body
Max.torque kN.M 125 100 100 100 50 25
ft.lbf 92200 73750 73750 73750 36880 18440
Speed of tong Hi. rpm 40 40 40 40 60 65
Speed of tong To. rpm 2.7 2.7 2.7 2.7 4.1 10.5
Hydraulic system pressure ratigin Mpa 20 16.6 16.6 16.6 16 12
Psi 2900 2400 2400 2400 2320 1740
Hydraulic system pressure ratigin L/min 114 114 114 114 120 180
gpm 30 30 30 30 32 48
Stoke of shifting cylinder mm 1500 1500 1500 / 1000 1000
in 59 59 59 / 39.4 39.4
Moving distance of tong mm / / / 0-3000 / /
in 0-59
Lifting diatance of tong mm / / 0-485 0-1800 / /
in 0-19 0-31.5
Overall dimensions mm 1720
*1050
*1750
1700
*1000
*1400
1700*
1000
*1400
1750*
1650
*2050
1570*
800
*1190
1110*
790
*820
in 68*
41*69
67*
39*55
67*
39*55
69*
65*81
62*
31*47
44*
31*32
Weight Kg 2600 2400 2500 3250 1500 620
