Product Details:
Payment & Shipping Terms:
|
| Model: | ZQ203-100 | Size Rang（mm）: | 121-203 |
|---|---|---|---|
| Size Rang（in）: | 31/2 Coupling -8body | Max.torque: | 100kN.M |
| Overall Dimensions（mm）: | 1700 *1000 *1400 | Weight（kg）: | 2400 |
| Package: | Wooden Case | Color: | Red, Yellow, Blue |
| Highlight: | 40rpm Drill Pipe Power Tong,Oilfield Hydraulic Casing Power Tong,100kN/M Oil Drilling Casing Power Tong |
||

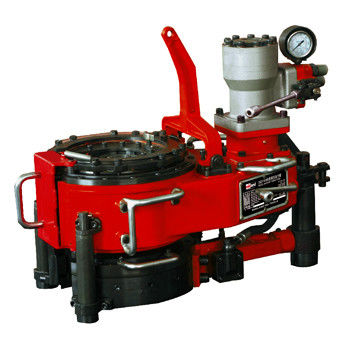

TQ340-35Y Hydraulic Casing Power Tong for Oilfield
Product Introduction

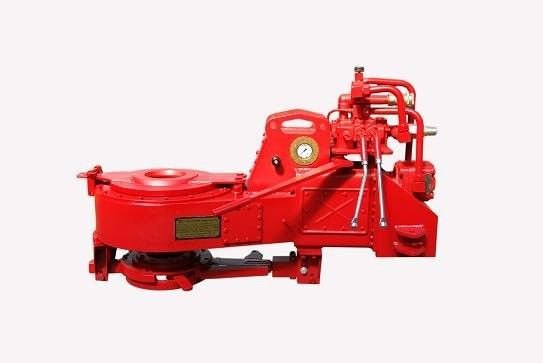

Hydraulic Power Tong is also called the Drill Pipe Power Tong, Our ZQ series drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.

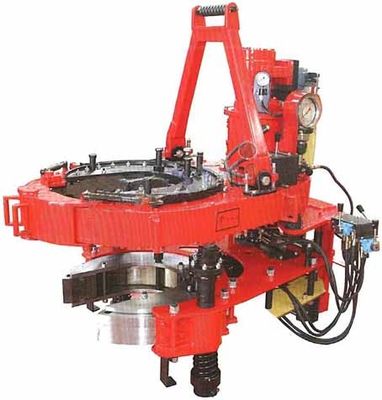

Our TQ series of Casing Tongs are widely used for making up or breaking out pipes or casings in diameters of 4 1/2~13 3/8 inch. The tong heads are designed 'open'type and can freely clamp and escope from the casing.
Product Features of Hydraulic Casing Power Tong
Technical Data of Hydraulic Casing Power Tong
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang |
mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
23/8 coupling -5body |
23/8 coupling-31/2body |
|
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 |
1700 *1000 *1400 |
1700* 1000 *1400 |
1750* 1650 *2050 |
1570* 800 *1190 |
1110* 790 *820 |
| in | 68* 41*69 |
67* 39*55 |
67* 39*55 |
69* 65*81 |
62* 31*47 |
44* 31*32 |
|
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited engages in solid control equipment and drilling waste management, oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
