| Size: | 2 3/8-10 3/4" | Rated Torque: | 35 KN.m |
|---|---|---|---|
| Color: | Red, Yellow, Blue | Type: | Workover Tong |
| No. Of Latch Lug Jaw: | 1,2,3,4 | Application: | Casing, Drill Ipe |
| Package: | Wooden Case | Processing Type: | Forging, Casting |
| High Light: | Oilfield Drill Spare Parts,Workover Tong Drill Spare Parts,4 1/2" Casing Drill Spare Parts |
||

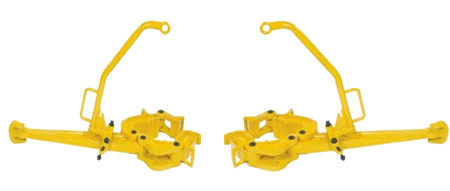

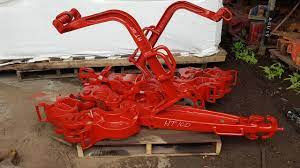

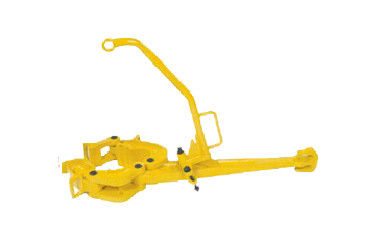

Oil Rig Equipment 4 1/2" Workover Tong / Casing Tong
Product Introduction
Manual Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment. s.
We supply a range of tubing and casing tongs made of high alloy steel and heat-treated for strength and wear. The tongs incorporate a wrap-around design with approximately 300° of die contact to minimize cutting or crushing of the pipe. All tongs are pull tested and documentation is available.
Key Specialities of Our Casing Manual Tong
Product Structure
Manual body is connected with joint pin on the boom and hang over the well rigs through the top ring on the boom,. Try to keep the tongs body in horizontal level by adjusting the balance head and adjustable square head screw. The pipe threads cold be tightened or removed as soon as the steel wire rope which is fastened on the tongs line pip has been pulled firmly after the latch and the lug jaw have been looped and the pipes have been held by the tongs head.
Technical Data of TR Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all kinds of oilfield tools in China. Our products range solid control equipment, OCTG, drilling equipments, well control equipments, downhole tools, etc. for use in all types of oil& gas drilling and well completion activities. With rigorous quality management system, ISO9001 and API certificate are held and products are exported to America, Middle East, Russia, Europe, etc. Good relations with many clients in the world has established. We are striving and aiming to be one of the most professional oilfield equipment suppliers in China. We sincerely welcome you to visit us and have a further cooperation.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
