Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8"-7" | Rated Torque: | 22 KN.m |
|---|---|---|---|

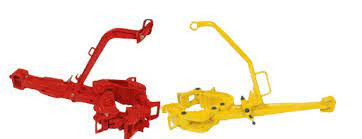

| Color: | Red, Yellow, Blue | Type: | LF Manual Tong |
| No. Of Latch Lug Jaw: | 1,2,3,4 | Material: | Carbon Steel |
| Latch Step: | 1,2 | Application: | Casing, Drill Ipe |
| High Light: | Type LF Casing Manual Tongs,22KN/M Casing Manual Tongs,Carbon Steel Casing Manual Tongs |
||

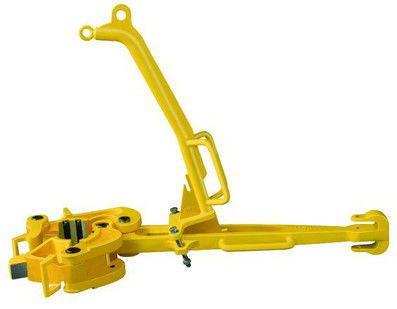

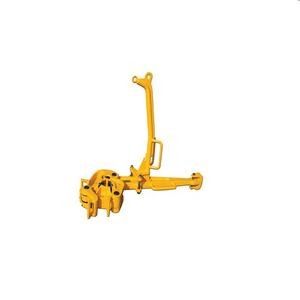

API 7K Type LF Casing Manual Tongs with Torque 22 KN.m
Product Introduction
Manual tongs are tools used to drill and unscrew various types of pipe strings and tools during drilling and workover operations. By changing the buckle heads and buckle steps, the requirements of the different sizes of pipe diameters and buckles can be met. Products are designed and manufactured in accordance with API Spec 7K specifications.
We could supply series of manual tong equal to NOV VARCO BJ style, covering all pipe sizes up to 36". All kinds of manual tongs are designed and manufactured according to API Spec 7K. According to the different handling size & torque, latch lug jaws and handling shoulders can be adjusted, and the multiple latch steps on the jaws will handle different size pipes without removing jaws.
Main Benefits of Our Casing Manual Tong
Parameters of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
Main Questions
1.How do you transport the goods?
We transport the goods by container. we possesses long term cooperation with ship agency which can provide you lowest shipping fee. For samples we can send by express.
2.Can you satisfy my special requirement?
Definitely! we have strong design capacity and R&D capacity!
3.Which shipment terms can you accept?
EXW FOB CNF CIF DDU DDP
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
