Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2"-17" | Rated Load: | 55/90 Ton |
|---|---|---|---|
| Color: | Red, Yellow, Blue | Type: | DB Manual Tong |
| No. Of Latch Lug Jaw: | 1,2,3,4 | Warranty: | 1 Year |
| Material: | Carbon Steel | Processing Type: | Forging, Casting |
| High Light: | Casing Drill Pipe Manual Tong,Wellhead 6" Manual Tong,Type DB Manual Tong |
||

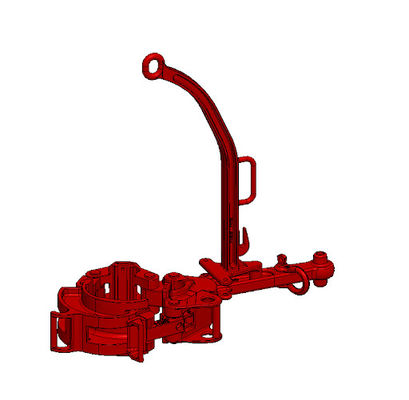

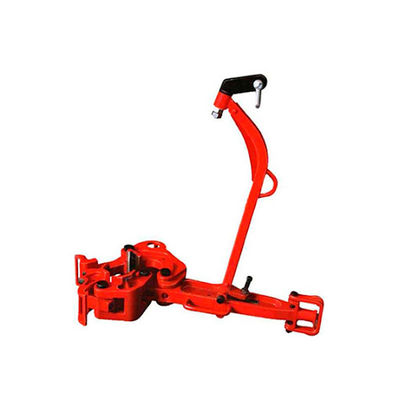

Wellhead 6" Casing Drill Pipe Manual Tong with Jaws
Product Introduction
Type C Manual Tong covers drill pipe or casing sizes from 2 3/8" through 10 3/4" OD and is mostly used on smaller rigs. The new rugged latch design makes the "C" Tong stronger than other models and also can be ordered with an optional 30 7/8" lever, where space is a problem. The tong is made from alloy steel, heat treated, load tested, and magnetic particle inspected. All specifications are certified.
We supply a range of tubing and casing tongs made of high alloy steel and heat-treated for strength and wear. The tongs incorporate a wrap-around design with approximately 300° of die contact to minimize cutting or crushing of the pipe. All tongs are pull tested and documentation is available.
Product Construction

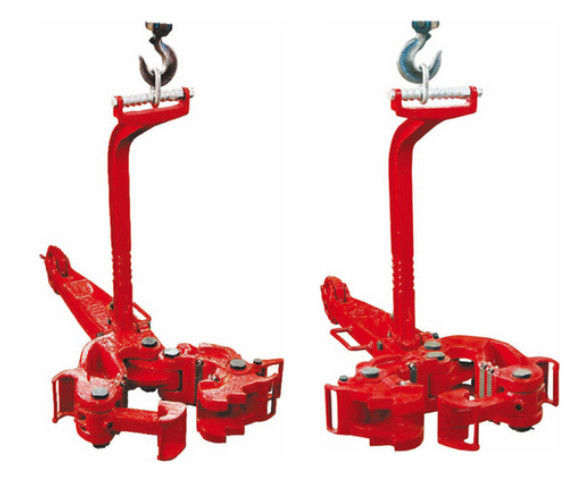

Our manual tong body is connected with joint pin on the boom and hang over the well rigs through the top ring on the boom,. Try to keep the tongs body in horizontal level by adjusting the balance head and adjustable square head screw. The pipe threads cold be tightened or removed as soon as the steel wire rope which is fastened on the tongs line pip has been pulled firmly after the latch and the lug jaw have been looped and the pipes have been held by the tongs head.
Characterstics of Our Casing Manual Tong
Product Parameters of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. engages into the designing, developing, testing, manufacturing, repairing, and drilling service. Its business covers drilling rig, workover rig, solids control equipment, drilling rig supporting and drilling strings and other equipments related with petroleum. Strictly abide by ISO9001 quality system certification and API standard. Looking forward to cooperating with you!
We welcome the win-win cooperation relationship with the partners from any places in the world, each customer is our god and helper. Warmly welcome you to come to China and visit us! With us, you will save money, time, trouble, and most important point is that you can sleep better.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
