Product Details:
Payment & Shipping Terms:
|
| Size: | 3 3/8"-13 3/8" | Rated Load: | 55/75 Ton |
|---|---|---|---|
| Color: | Red, Yellow, Blue | Usage: | Well Drilling |
| Type: | Manual Tong | After-sale Service: | Included |
| No. Of Latch Lug Jaw: | 5a, 5b, 5c, 5d | ||
| High Light: | Manual Drill Pipe Tongs,Type B Drill Pipe Tongs,75T Load Drill Pipe Tongs |
||

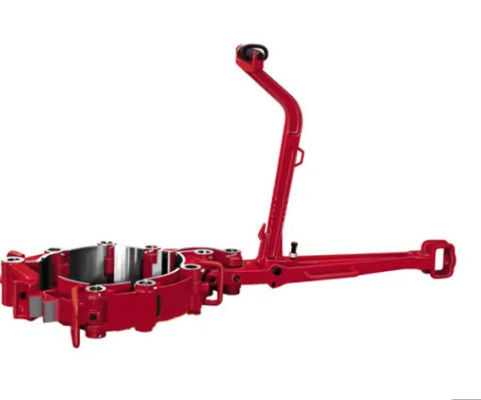

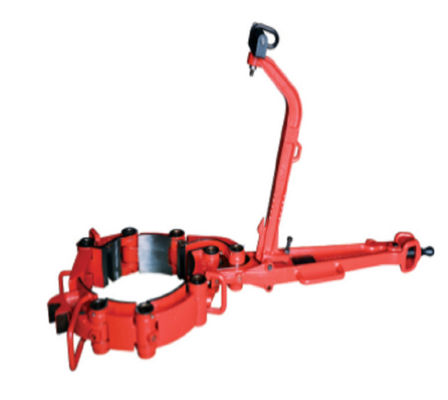

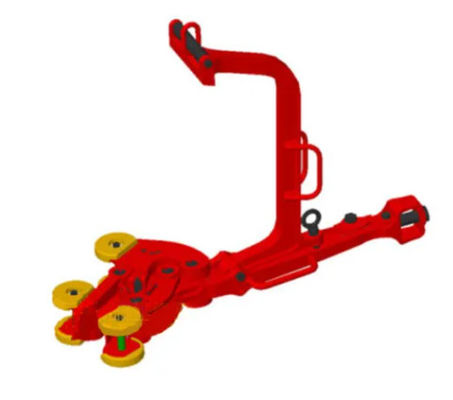

Red Color Type B 6 5/8" Manual Tongs for Drill Pipe
Product Introduction
Manual Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Type "B" Tong has established itself to be one of the best for toughness and durability and it is the most popular tong on the market and can be ordered with a 36" or 48" lever. The tong is made from alloy steel, heat treated and magnetic particle inspected. Sizes range from 3 1/2" through 13 3/8" OD All steel specifications are certified.
Type B Casing Tong is capable of making up or breaking out the screws of casing and casing couplings in drilling operation.
Main Advantages of Our Casing Manual Tong
Technical Info. of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is the professional manufacturer for solid control equipment and the drill stem testing tools. All of our tools are conformed with NACE MR 0175 with traceability, and the tools can be worked in H2S & CO2 above 175 F and full H2S, also with the skilled and experienced engineers, we can design the drill stem testing tools as per customer's well condition. Moreover, we supply the training in our factory and operation instruction at the well site. Tianrui products are exported to USA, Colombia, India, Pakistan, Iran, Brazil etc. and enjoy the good reputation from the customers.
We welcome the win-win cooperation relationship with the partners from any places in the world, each customer is our god and helper. Warmly welcome you to come to China and visit us! With us, you will save money, time, trouble, and most important point is that you can sleep better.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
