| Size: | 4"~17" | Rated Load: | 14~135Tons |
|---|---|---|---|
| Warranty: | 12 Months | Color: | Red, Yellow, Blue |
| Usage: | Well Drilling | Type: | Manual Tong |
| Package: | Wooden Case | After-sale Service: | Included |
| High Light: | Casing Manual Drill Pipe Tongs,Oilfield Drill Pipe Tongs,14T Load Drill Pipe Tongs |
||

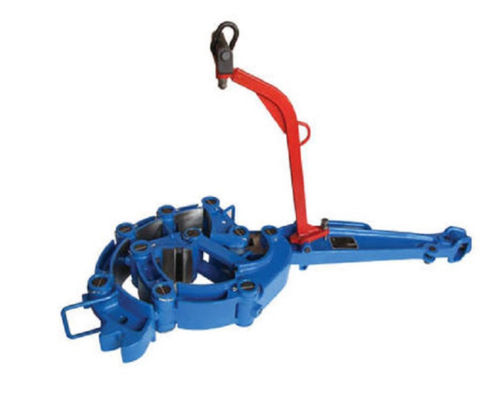

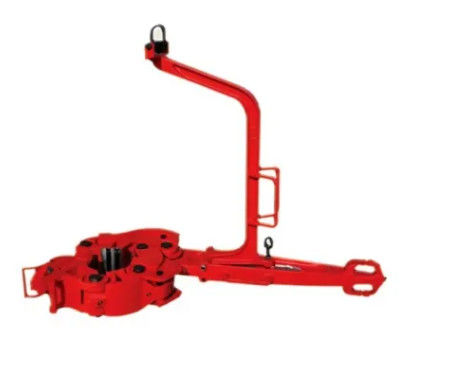

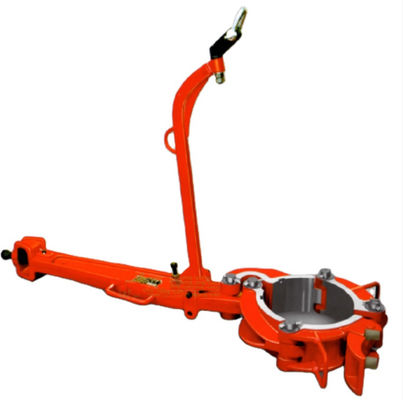

Large Diameter Casing Tongs / Manual Tong for Oilfield
Product Introduction
Casing tongs are used to tighten or unscrew casing and casing coupling threads in petroleum drilling operations. Products are designed and manufactured according to API Speck 7K specifications.
Type SDD Manual Tongs are designed and manufactured according to API Spec 7K which is used for making up and breaking out drill pipes, casing etc. It can be adjusted by changing latch lug jaws and handling shoulders.
As the manufacturer, we produce below items:
-Solid control product-shale shaker, mud cleaner, decanter centrifuge, mud agitator, centrifugal pump etc.
-DST tools- Full bore retrievable packer, circulating valve, select tester valve,safety valve etc.
-Surface well testing equipment - Flowhead, SSV, ESD,Separator etc.
-Wellhead equipment such as BOP, X-mas tree, Choke manifold, kill manifold, drilling spool, casing head and other valve & flanges
-Downhole tools such as stabilizer, stabilizer forging, reamer, X-over sub and so on.
Our Service
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by our company at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, TR will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Features of Our Casing Manual Tong
Technical Parameters of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
