Product Details:
Payment & Shipping Terms:
|
| Size: | 4"~17" | Processing Type: | Forging |
|---|---|---|---|
| Rated Load: | 35/55 Ton | Warranty: | 12 Months |
| Color: | Red, Yellow, Blue | Usage: | Well Drilling |
| Type: | Extended Casing Tong | No. Of Hinge Jaw: | 7,8,9 |
| High Light: | Oilfield Extended Casing Tong,Carbon Steel Casing Tong,Hinge Jaw Casing Tong |
||

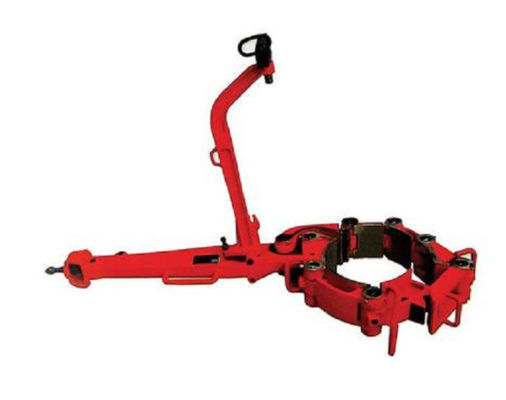

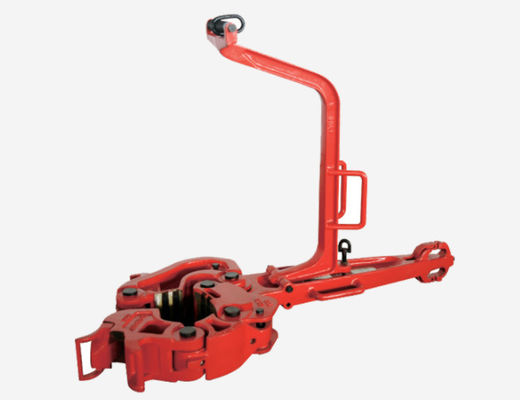

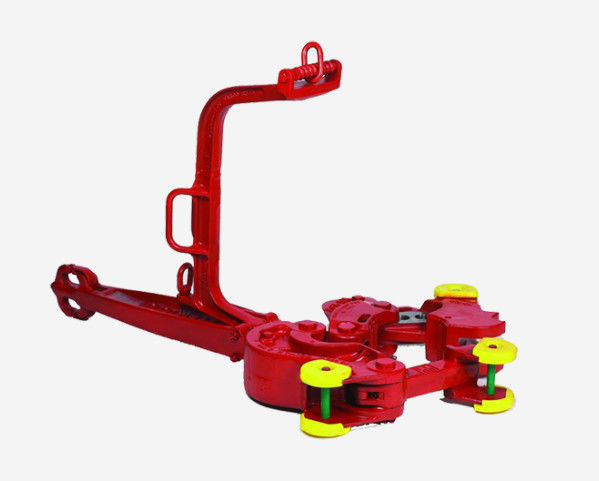

Carbon Steel Oilfield Extended Casing Tong with Hinge Jaw
Product Introduction
Manual Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
HT series lifting tongs are manual lifting tongs with hand guards. Manual lifting tongs are tools used for lifting and unbuckling various types of pipe strings and tools during drilling and workover operations. The size of the pipe diameter, the need for shackle. Products are designed and manufactured in accordance with API Spec 7K specifications.
Type SDD Manual Tongs are designed and manufactured according to API Spec 7K which is used for making up and breaking out drill pipes, casing etc. It can be adjusted by changing latch lug jaws and handling shoulders.
Our Service
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by our company at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, TR will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Technical Specifications of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
