| Size: | 4"~17" | Latch Lug Jaw: | 5a~5e3 |
|---|---|---|---|
| Material: | Carbon Steel | Processing Type: | Forging |
| Rated Load: | 14~135Tons | Warranty: | 12 Months |
| Color: | Red, Yellow, Blue | Application: | Energy & Mining |
| High Light: | Manual Tong Drill Spare Parts,Workover Tong Drill Spare Parts,Energy Mining Workover Manual Tong |
||

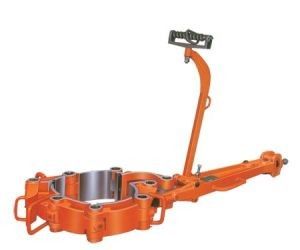

API 7K Wellhead Tool Workover Manual Tong Casing Tong
Product Introduction
Casing tongs are used to tighten or unscrew casing and casing coupling threads in petroleum drilling operations. Products are designed and manufactured according to API Speck 7K specifications.
Manual Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Xi'an TianRui Petroleum Machinery Equipment Company follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Product Structure
Type C tongs body is connected with joint pin on the boom and hang over the well rigs through the top ring on the boom,. Try to keep the tongs body in horizontal level by adjusting the balance head and adjustable square head screw. The pipe threads cold be tightened or removed as soon as the steel wire rope which is fastened on the tongs line pip has been pulled firmly after the latch and the lug jaw have been looped and the pipes have been held by the tongs head.
Product Specifications of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is the professional manufacturer for solid control equipment and the drill stem testing tools. All of our tools are conformed with NACE MR 0175 with traceability, and the tools can be worked in H2S & CO2 above 175 F and full H2S, also with the skilled and experienced engineers, we can design the drill stem testing tools as per customer's well condition. Moreover, we supply the training in our factory and operation instruction at the well site. Tianrui products are exported to USA, Colombia, India, Pakistan, Iran, Brazil etc. and enjoy the good reputation from the customers.
Our Service
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
