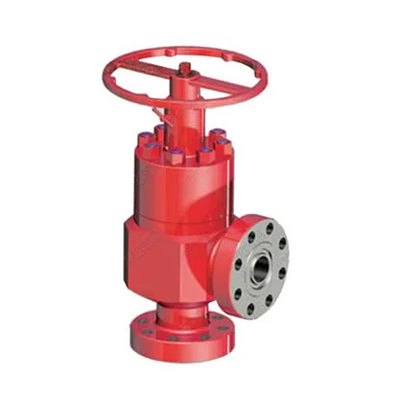

Oilfield Flange Connection Adjustable Choke Valve 5000PSI

Oilfield Flange Connection Adjustable Choke Valve 5000PSI

Product Introduction

Adjustable choke is used to control the flow rate of fluids for a broad range of application, including well testing, wellheads, stream injection, choke manifold and well clean operation, etc. It’s the main spare part of choke manifold. Regarding the chokes our client ordered, size is 7 1/16" with working pressure 5000Psi. Our adjustable valve meets API 6A strictly. Temperature level is U, performance level is PR1. Material level is DD, meanwhile product specification level is PSL2. Our product and package got positive evaluation from client.

Adjustable and positive choke valves are designed for reliable flow control and maximum wear life, The choke valves are available in flanged or threaded ends in standard bore sizes form 1-13/16" thru 13-5/8", in working pressures of 2000 psi through 20000 psi.

Product Specification

1) API 6A spec adjustable choke valve
2) Size: 1-1/16-7-1/16"
3) Working Pressure: 2000 -15000 Psi
4) Material Class: AA-FF
5) Product Specifications: PSL1~ 3
6) Temperature Class: P-U
7)  Product Requirement: PR1,PR2
8) Working Medium: Oil, natural gas, mud and gas containing H2S, CO2
9) Working Temperature: -46°C~121°C(Class LU)

Operation Instruction

According to medium flow direction and by the flowdirection indicating plate of the valve, the valve isinstalled. As positive flowing, The medium lifts the valvecore and pass easily; If no positive medium pressure,valve core will self-shut off valve gate under self-weightand spring's tensile force, the back medium flowing stop.

Technical Parameters of Oilfield Choke Valve

​

Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city, China. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: solid control equipment, Petroleum equipment & tools such as drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc.

Our main products

Drill Equipment, Solid control equipment, Well control system, OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
