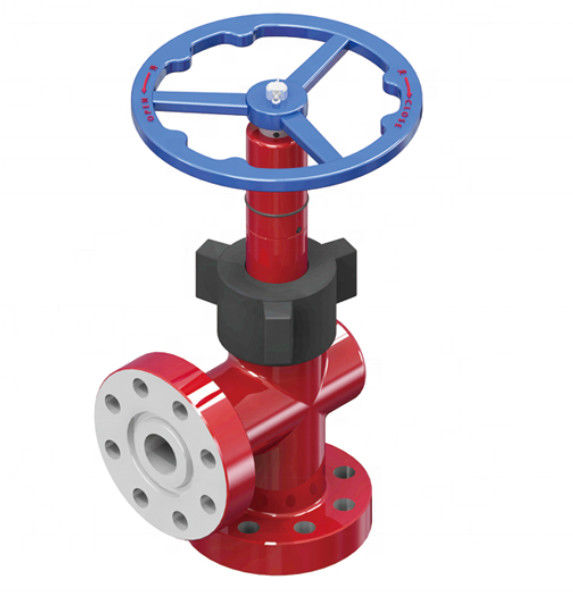

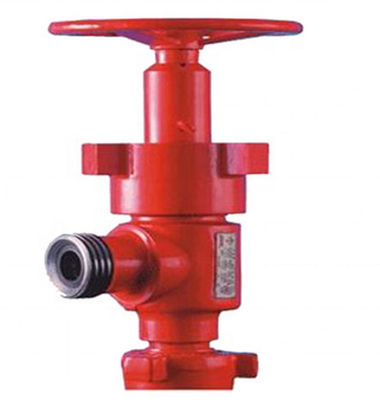

PR1 Needle Angle Choke Valve 4-1/16" For Well Drilling

High Pressure Angle Needle Choke Valve Size 4-1/16"

Product Introduction

The choke valve, a main Description of Christmas tree, is design to control production rate of the oil well, with working pressure up to 10000psi. Choke valves can be classified as follows: Adjustable choke valves and positive choke valves.

By rotating hand wheel to drive the stem, the adjustable choke valve is designed to adjust the effective area available for the flow to accomplish control of production rate. The positive choke valve is design to accomplish control of production rate by changing flow beans.

The hydraulic choke valve is employed on manifolds and other assemblies and designed for flow control. In order to control flow rate, the hydraulic choke valve uses the valve core which can be lifed and lowered to adjust the effective area available.

How to maintain a choke valve?

• Every seal element is replaced according to itsexamination.
• As leak appears at the middle one of the valvebores, ring gasket should be replacedThe valve should be placed in the dry and airy room,and the inlet and outlet are sealed properly.
• When the product is stored, the end flanges shouldbe coated by oil against rust and dirt pollution.
• The valve-core and the valve-seat must be exam-ined every in a well time. The attrition rate will decidewhether they are used by upset or are replaced.
• There is a bit leak at a couple of seals of valve, andthe sealing-face may have scratch or wear. Renovationwill be done under face-off and ground finish..

​Product Technical Data of Oilfield Choke Valve

​

Xi'An TianRui Petroleum Machinery Equipment Company is a professional solid control manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include solid control equipment, oil drilling and service equipment, oil production equipment, OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.

Our products Including below four series with full model types:
Solid Control: mud cleaner, shale shaker, decanter centrifuge, mud agitator;
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
