| Size: | 2 7/8"-11 1/4" | Model: | TA |
|---|---|---|---|
| Rated Load: | 35-150Tons | Type: | Center Latch Elevator |
| Package: | Wooden Case | Application: | Oil Drilling |
| Benefit: | High Performance | Usage: | Drill Collar, Casing, Tubing |
| High Light: | Center Latch Casing Elevators,Hinged Mechanism Casing Elevators,Oil Drilling Casing Elevators |
||

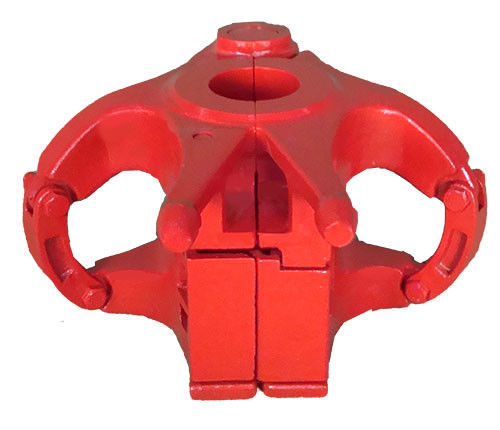

TA125 Casing Center Latch Elevator 125 Ton for Oilfield
Product Introduction
Elevator is a hinged mechanism that may be closed around drill pipe or other drill string components to facilitate lowering them into the wellbore or lifting them out of the wellbore. In the closed position, the elevator arms are latched together to form a load-bearing ring around the component. A shoulder or taper on the component to be lifted is larger in size than the inside diameter of the closed elevator. In the open position, the device splits roughly into two halves and may be swung away from the drill string component.
The TA Style Elevators are for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 tons to 150 tons and cover all size tubular up to 11-1/4".
Our Services
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russain.
Packaging Detail
1. Normal packing: plywood case, wooden box or pallet.
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 260 Kg.
4. Standard packing dimension: 940 * 550 * 400 mm.
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Technical Sheet Data of Our TA Type Elevator
|
Model |
Size(in) |
Rate Cap. (Short Tons) |
|||
|
DC |
Tubing |
Casing |
|||
| NU | EU | ||||
| TA-35 | 2 7/8-3 1/8 | 1.05-2 7/8 | 1.05-2 7/8 | / | 35 |
| TA-65 | 2 7/8-3 1/8 | 1.66-2 7/8 | 1.66-2 7/8 | / | 65 |
| TA-100 | 3 7/8-5 1/4 | 2 3/8-5 | 2 3/8-5 | / | 100 |
| TA-150 | 4 1/8-11 1/4 | / | / | 4 1/2-10 3/4 | 150 |
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load | ||
| In | mm | mm | In | kN(Tons) | |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 |
100(900)
150(1350)
200(1800)
250(2250)
350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 | ||
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 | ||
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 | ||
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 | ||
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 | ||
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 | ||
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 | ||
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 | ||

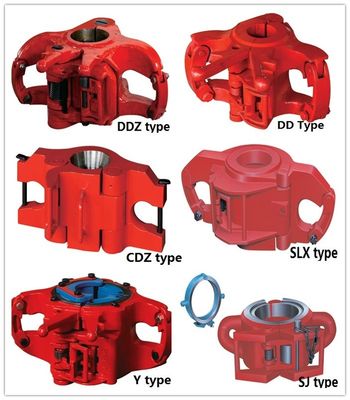

| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU |
150(1350)
250(2250)
350(3150)
|
|
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU | ||
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU | ||
| DDZ109 | 4IU | 109 | 4IU | ||
| DDZ121 | 4 EU | 121 | 4 EU | ||
| 4 1/2IU | 4 1/2IU | ||||
| 4 1/2IEU | 4 1/2IEU | ||||
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU | ||
| 5IEU | 5IEU | ||||
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU | ||
