Product Details:
Payment & Shipping Terms:
|
| Size: | 2 7/8"-11 1/4" | Model: | TA |
|---|---|---|---|
| Rated Load: | 35-150Tons | Warranty: | 1 Year |
| Color: | Red, Orange | Package: | Wooden Case |
| Application: | Oil And Gas Drilling | Material: | Carbon Steel |
| High Light: | Gas Drilling Center Latch Elevators,Oilfield Hoisting Center Latch Elevators,150T Load Center Latch Elevators |
||

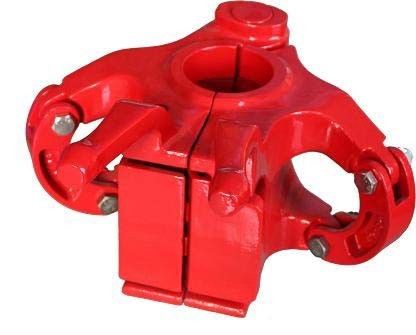

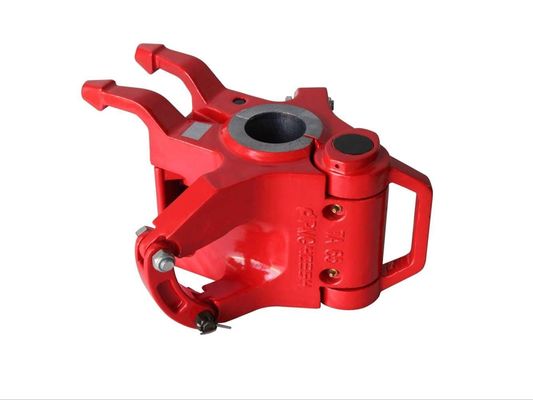

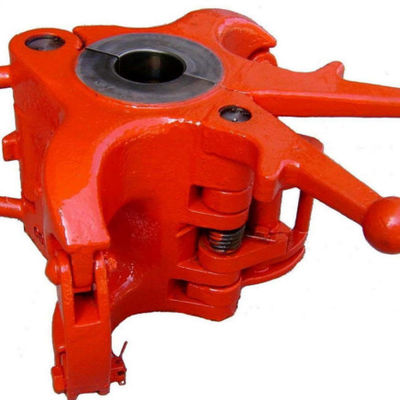

API Oilfield Hoisting Equipment Elevator Type TA 150 Ton
Product Introduction
Drill pipe elevators are conventional center door elevators for handling square shoulder drill pipes in oil and gas drilling operation, the elevators are cast from high quality alloy steel, heat-treated, and NDT tested. the rated loads rang from 100t(1350kN) to 500t(4500kN).
Model TA center latch elevators with square shoulder are suitable for handling drill collar, casing and tubing. The products are designed and manufactured according to the requirement in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Why choose us?
1. Good manufacturer and supplier on the website, is a credit company.
2. Advanced technology, high quality products and reasonable price!
3. Good service, the customization and trial order are both accepted.
4. A talent and experienced team.
Our Service
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russain.
3. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
Technical Parameter of Our TA Type Elevator
|
Model |
Size(in) |
Rate Cap. (Short Tons) |
|||
|
DC |
Tubing |
Casing |
|||
| NU | EU | ||||
| TA-35 | 2 7/8-3 1/8 | 1.05-2 7/8 | 1.05-2 7/8 | / | 35 |
| TA-65 | 2 7/8-3 1/8 | 1.66-2 7/8 | 1.66-2 7/8 | / | 65 |
| TA-100 | 3 7/8-5 1/4 | 2 3/8-5 | 2 3/8-5 | / | 100 |
| TA-150 | 4 1/8-11 1/4 | / | / | 4 1/2-10 3/4 | 150 |
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load | ||
| In | mm | mm | In | kN(Tons) | |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 |
100(900)
150(1350)
200(1800)
250(2250)
350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 | ||
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 | ||
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 | ||
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 | ||
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 | ||
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 | ||
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 | ||
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 | ||
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU |
150(1350)
250(2250)
350(3150)
|
|
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU | ||
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU | ||
| DDZ109 | 4IU | 109 | 4IU | ||
| DDZ121 | 4 EU | 121 | 4 EU | ||
| 4 1/2IU | 4 1/2IU | ||||
| 4 1/2IEU | 4 1/2IEU | ||||
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU | ||
| 5IEU | 5IEU | ||||
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU | ||
Xi'an TianRui Petroleum Machinery Equipment Company Limited Was established in 2010 and located in Xi'an city. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: Petroleum equipment & tools such as solid control equipment, drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc. Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards. We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market. As a leading manufacturer of petroleum machinery, I'm pleased to inform you that we have working with many big companies throughout the world.
It would be our pleasure to begin a business relationship with you and supply u with our quality products, as a professional manufacturer, i would like to introduce our products to you and offer you a quote.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
