Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8"-5 1/2" | Model: | CDZ |
|---|---|---|---|
| Rated Load: | 150-500Tons | Application: | Handling Drill Pipe |
| Taper Shoulder: | 18 Degree | Warranty: | 1 Year |
| Color: | Red, Orange | Package: | Wooden Case |
| High Light: | Oilfield Drill Tubing Elevators,150T Load Tubing Elevators,API 8A Drill Tubing Elevators |
||

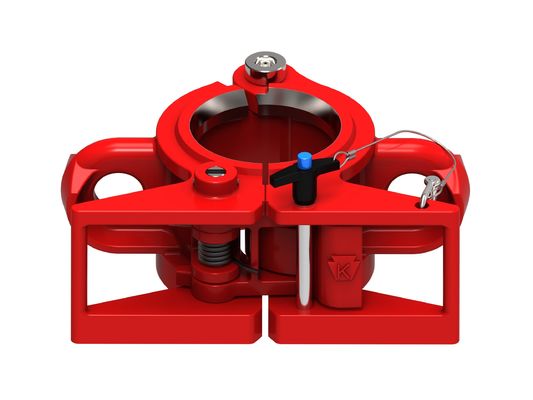

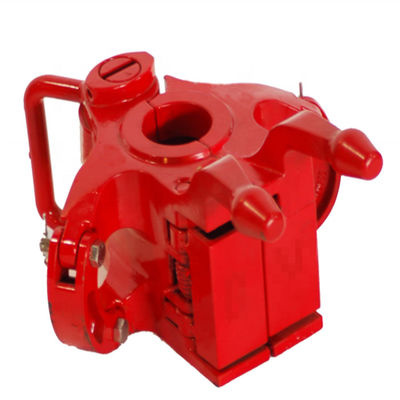

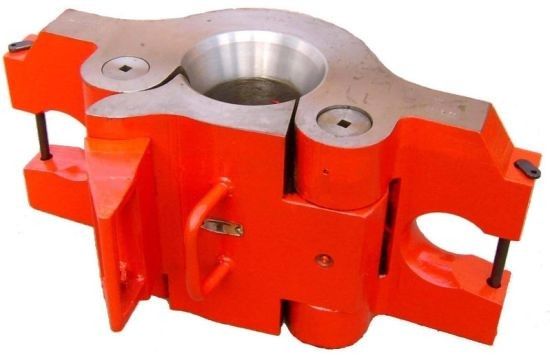

Type CDZ 2 3/8" 150 Ton Drill Pipe Elevator for Oilfield
Product Introduction
The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment. S Series side door elevators with square shoulder are suitable for handling casings in oil drilling, natural gas drilling and well construction. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.
CDZ drilling pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and
natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Our Services
1. CDZ series elevator strictly according to API 8A and 8C standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
Technical Specification of Our CDZ Type Elevator
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load | ||
| In | mm | mm | In | kN(Tons) | |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 |
100(900)
150(1350)
200(1800)
250(2250)
350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 | ||
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 | ||
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 | ||
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 | ||
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 | ||
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 | ||
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 | ||
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 | ||
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU |
150(1350)
250(2250)
350(3150)
|
|
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU | ||
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU | ||
| DDZ109 | 4IU | 109 | 4IU | ||
| DDZ121 | 4 EU | 121 | 4 EU | ||
| 4 1/2IU | 4 1/2IU | ||||
| 4 1/2IEU | 4 1/2IEU | ||||
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU | ||
| 5IEU | 5IEU | ||||
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU | ||
As China leading manufacturer and supplier for wire rope, chain, solid control equipment, wellhead tools, fishing tools, handling tools, downhole tools, Xi'an TianRui Petroleum Machinery Equipment Company Limited provides a diverse portfolio of products to meet customers' needs.
Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of varous oilfield equipment , including oil drilling and service equipment, solid control equipment, Oil production equipment, OCTG products, wellhead & downhole tools and spare parts. Our design and products are restrictly under API SPEC 7K/8C/6A. Our products have been already been export to USA ,South America, Africa, Europen, Russsia and other countries. Xi'An TianRui Petroleum Machinery Equipment Company Limited has built an excellent global distribution network and the capability of providing value added services to end users.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
