Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8"-6 5/8" | Model: | DDZ |
|---|---|---|---|
| Pipe Size: | 2 3/8-5 1/2" | Rated Load: | 100~350Tons |
| Taper Shoulder: | 18 Degree | Open Type: | Center Latch Elevator |
| Gross Weight: | 350 Kg | Dimension: | 76*68*48 Cm |
| High Light: | 18 Degree Drill Pipe Elevators,API 8C Drill Pipe Elevators,NDT Tested Drill Pipe Elevators |
||

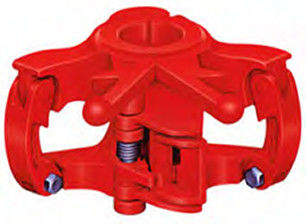

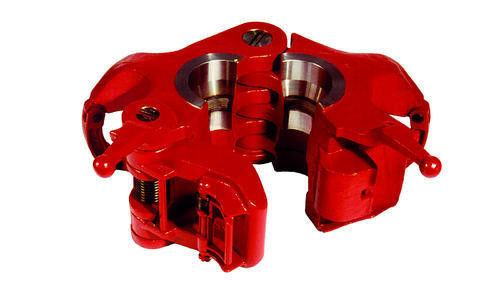

API 8C Center Latch 18 Degrees Type Drill Pipe Elevator
Product Introduction
Drill pipe elevators are conventional center door elevators for handling square shoulder drill pipes in oil and gas drilling operation, the elevators are cast from high quality alloy steel, heat-treated, and NDT tested. the rated loads rang from 100t(1350kN) to 500t(4500kN).
"G" type drill pipe elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. ZX "G" type drill pipe elevators are conventional center latch taper type elevators for handling drill pipe.
There are eight types ranging from 100 to750 ton capacity and covering pipe sizes from 2-3/8'' to 6-5/8" OD. A modified G type elevator uses a special wear bushing for use with Top Drive Systems.
Packaging Detail
1. Normal packing: plywood case, wooden box or pallet.
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 260 Kg.
4. Standard packing dimension: 940 * 550 * 400 mm.
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Technical Parameters of Our DDZ Type Elevator
| Model | Size(in) | Rated Cap. | Remark |
| DDZ-100 | 2 3/8- 5 | 100 | MG |
| DDZ-150 | 2 3/8- 5 1/2 | 150 | RG |
| DDZ-250 | 2 3/8- 5 1/2 | 250 | MGG |
| DDZ-350 | 3 1/2- 5 7/8 | 350 | GG |
| DDZ-350TD | 3 1/2- 5 7/8 | 350 | For Top Drive |
| DDZ-500 | 3 1/2- 6 5/8 | 500 | HGG |
| DDZ-500TD | 3 1/2- 6 5/8 | 500 | For Top Drive |
| DDZ-750 | 4- 6 5/8 | 750 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited has been one of the most professional manufacturer of solid control equipment, downhole tools, wellhead tools, fishing tools, cementing tools, handling tools in Oil & Gas drilling fields of China.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
