Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8"-6 5/8" | Model: | DDZ |
|---|---|---|---|
| Pipe Size: | 2 3/8-5 1/2" | Rated Load: | 100~350Tons |
| Application: | For Top Drive | Taper Shoulder: | 18 Degree |
| Open Type: | Center Latch Elevator | Warranty: | 1 Year |
| High Light: | 150 Ton Oilfield Elevator,2 3/8" Oilfield Elevator,Center Latch Oilfield Elevator |
||

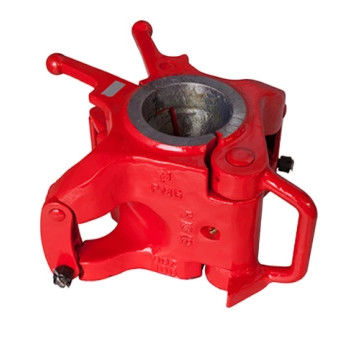

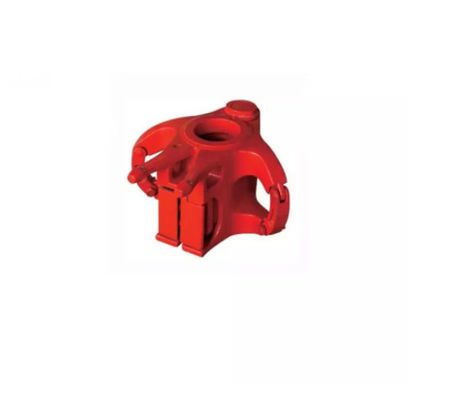

DDZ 2 3/8" 150 Ton Drill Pipe Elevator for Oilfield
Product Introduction
The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment. S Series side door elevators with square shoulder are suitable for handling casings in oil drilling, natural gas drilling and well construction. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.
DDZ 3 1/2-150Ton drill pipe elevator are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools. The load ranges from 100Tons to 750 Tons. of which the size from 2 3/8" to 6 5/8". All products are designed and manufacturered according to API Spec 8C.
Packaging Details
1. Normal packing: plywood case, wooden box or pallet.
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 260 Kg.
4. Standard packing dimension: 940 * 550 * 400 mm.
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Technical Specification of Our DDZ Type Elevator
| Model | Size(in) | Rated Cap. | Remark |
| DDZ-100 | 2 3/8- 5 | 100 | MG |
| DDZ-150 | 2 3/8- 5 1/2 | 150 | RG |
| DDZ-250 | 2 3/8- 5 1/2 | 250 | MGG |
| DDZ-350 | 3 1/2- 5 7/8 | 350 | GG |
| DDZ-350TD | 3 1/2- 5 7/8 | 350 | For Top Drive |
| DDZ-500 | 3 1/2- 6 5/8 | 500 | HGG |
| DDZ-500TD | 3 1/2- 6 5/8 | 500 | For Top Drive |
| DDZ-750 | 4- 6 5/8 | 750 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of varous oilfield equipment , including oil drilling and service equipment, solid control equipment, Oil production equipment, OCTG products, wellhead & downhole tools and spare parts. Our design and products are restrictly under API SPEC 7K/8C/6A. Our products have been already been export to USA ,South America, Africa, Europen, Russsia and other countries. Xi'An TianRui Petroleum Machinery Equipment Company Limited has built an excellent global distribution network and the capability of providing value added services to end users.
Why choose us?
1. Good manufacturer and supplier on the website, is a credit company.
2. Advanced technology, high quality products and reasonable price!
3. Good service, the customization and trial order are both accepted.
4. A talent and experienced team.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
