Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8"-6 5/8" | Model: | DDZ |
|---|---|---|---|
| Material: | Carbon Steel | Pipe Size: | 2 3/8-5 1/2" |
| Processing Type: | Forging | Rated Load: | 100~350Tons |
| Application: | For Top Drive | Taper Shoulder: | 18 Degree |
| High Light: | Drill Pipe Center Latch Elevator,API 8C Type Center Latch Elevator,100t Load Center Latch Elevator |
||

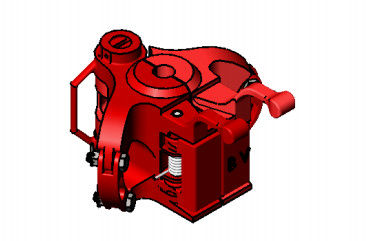

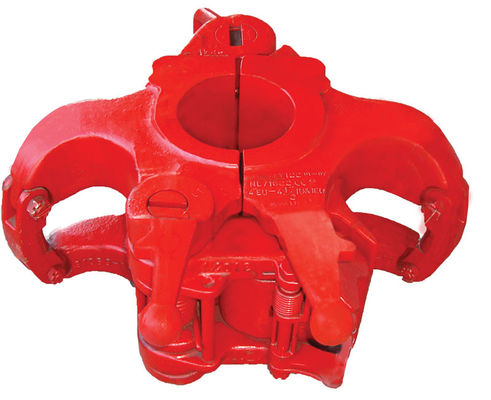

API 8C Type DDZ Drill Pipe Center Latch Elevator
Product Introduction
Drill pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.
The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment. S Series side door elevators with square shoulder are suitable for handling casings in oil drilling, natural gas drilling and well construction. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.

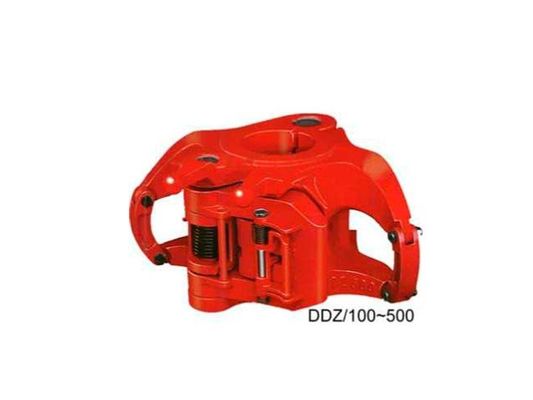

DDZ series elevators are center latch elevator with 18 degree taper shoulder applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750tons. The size rangs are from 2 3/8 to 6 5/8 in. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for drilling and production Hoisting and Equipment.
Our Service
As the distributor, we are working with large rig companies and heavy equipment manufacturers for the below products:
Product Specifications of Our DDZ Type Elevator
| Model | Size(in) | Rated Cap. | Remark |
| DDZ-100 | 2 3/8- 5 | 100 | MG |
| DDZ-150 | 2 3/8- 5 1/2 | 150 | RG |
| DDZ-250 | 2 3/8- 5 1/2 | 250 | MGG |
| DDZ-350 | 3 1/2- 5 7/8 | 350 | GG |
| DDZ-350TD | 3 1/2- 5 7/8 | 350 | For Top Drive |
| DDZ-500 | 3 1/2- 6 5/8 | 500 | HGG |
| DDZ-500TD | 3 1/2- 6 5/8 | 500 | For Top Drive |
| DDZ-750 | 4- 6 5/8 | 750 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of varous oilfield equipment , including oil drilling and service equipment, solid control equipment, Oil production equipment, OCTG products, wellhead & downhole tools and spare parts. Our design and products are restrictly under API SPEC 7K/8C/6A. Our products have been already been export to USA ,South America, Africa, Europen, Russsia and other countries. Xi'An TianRui Petroleum Machinery Equipment Company Limited has built an excellent global distribution network and the capability of providing value added services to end users.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation. The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
