Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2" ~30" | Model: | SX SLX Style Side Door Elevator |
|---|---|---|---|
| Material: | Carbon Steel | Pipe Size: | 2 3/8-5 1/2" |
| Processing Type: | Casting | Rated Load: | 65Ton, 100Ton,150 Ton,200 Ton |
| Color: | Red, Orange | Usage: | Well Drilling, Oilfield |
| High Light: | 150 Ton Load Casing Elevator,Oilfield Side Door Casing Elevator,Gas Drilling Casing Elevator |
||

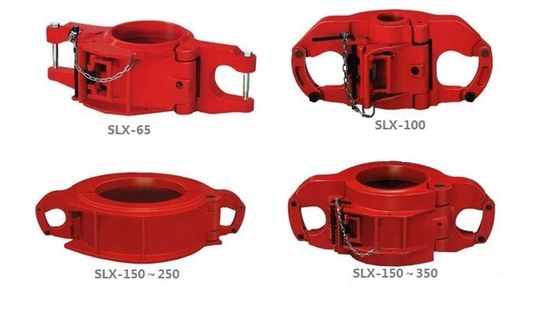

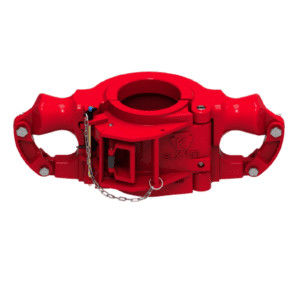

Model SLX Side Door Casing Elevator Capacity 150 Ton
Product Introduction
The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment. S Series side door elevators with square shoulder are suitable for handling casings in oil drilling, natural gas drilling and well construction. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.
Drill pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.
Type SLX side door elevator with square shoulder is suitable for handling tubing, casing, drill pipe and drill collar in oil and natural gas drilling, well construction. The Elevators are designed and manufactured according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment.
Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we guarantee most accessories. Provided emails with details including pictures or short video, we will send guide manual or replacements at our cost to repair.
Product Specifications of Our SLX Type Elevator
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load | ||
| In | mm | mm | In | kN(Tons) | |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 |
100(900)
150(1350)
200(1800)
250(2250)
350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 | ||
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 | ||
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 | ||
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 | ||
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 | ||
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 | ||
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 | ||
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 | ||
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU |
150(1350)
250(2250)
350(3150)
|
|
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU | ||
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU | ||
| DDZ109 | 4IU | 109 | 4IU | ||
| DDZ121 | 4 EU | 121 | 4 EU | ||
| 4 1/2IU | 4 1/2IU | ||||
| 4 1/2IEU | 4 1/2IEU | ||||
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU | ||
| 5IEU | 5IEU | ||||
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU | ||
Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include : Petroleum equipments & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, downhole tools, well control equipments, cementing tools ,and petrochemicals etc.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
