Product Details:
Payment & Shipping Terms:
|
| Size: | 60.3-117.8 Mm | Model: | Y Series |
|---|---|---|---|
| Color: | Red | Material: | Carbon Steel |
| Warranty: | 12 Months | Product Name: | Slip Type Elevator |
| Advantage: | High Efficiency | Capacity: | 20,40,75,125,150,200 KN |
| High Light: | Carbon Steel Oilfield Drilling Tools,API Slip Type Drilling Elevator,200KN Slip Type Drilling Elevator |
||

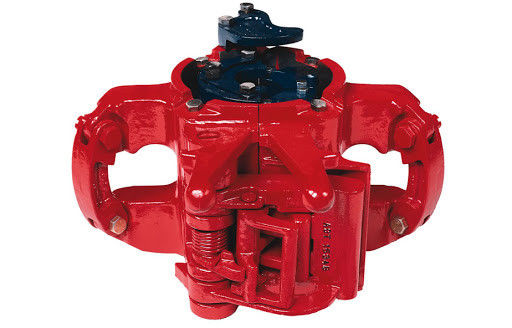

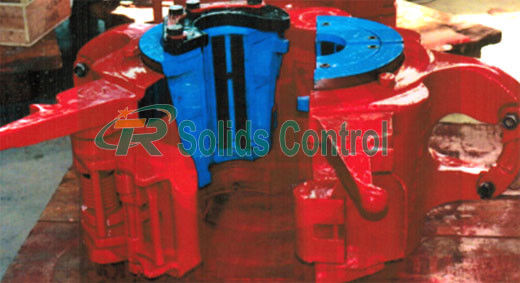

Oilfield Drilling Tools Elevator API Slip Type Elevator
Product Overview
Slip Type Elevators/ Spiders are mechanized tools with air operating.They can handle casings up to 24 1/2 inch. They are easy to operate and dependable enough. Also they can reduce workload. They are designed and manufactured according to API Spec 8A/8C Specification for drilig and production hoisting equipment.
The slip type Drill pipe elevator is an indispensable tool in holding and hoisting drill pipes, casing and tubing in the oil drilling and well tripping operation.
It's especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
.
Company Service
As the manufacturer, we produce below items:
-Solid control product-shale shaker, mud cleaner, decanter centrifuge, mud agitator, centrifugal pump etc.
-DST tools- Full bore retrievable packer, circulating valve, select tester valve,safety valve etc.
-Surface well testing equipment - Flowhead, SSV, ESD,Separator etc.
-Wellhead equipment such as BOP, X-mas tree, Choke manifold, kill manifold, drilling spool, casing head and other valve & flanges
-Downhole tools such as stabilizer, stabilizer forging, reamer, X-over sub and so on.
Technical Sheet of Our Slip Type Elevator
| Model | Size | Rated Cap. | |
| mm(in) | kN | short Tons | |
| HYT | 60.3-88.9(23/8-31/2) | 1350 | 150 |
| YT |
33.4-88.9(1.315-31/2) |
675 | 75 |
| MYT | 33.4-73(1.315-27/8) | 360 | 40 |
| LYT | 26.7-52.4(1.05-11/16) | 180 | 20 |
| HYC | 88.9-139.7(31/2-75/8) | 1800 | 200 |
| MYC | 88.9-117.8(31/2-7) | 1125 | 125 |

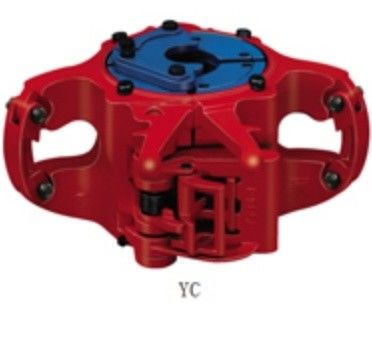

| YC | 88.9-117.8(31/2-7) | 675 | 75 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited, with the brand of TR Solids Control, located in Xi'an city of China. We are an international manufacturing company that mainly engaged in importing & exporting of all kinds of petroleum equipments, solid control equipment, equipment maintenance and engineer service.
We have almost 11 years experience of the manufacting, design and supply drilling and workover rig in China, more than 30 engineers' team can satisfy all the special requirement of the oilfield products, can design special according the oilfiled situations and customers requirment.
Our customers come from all over the world, mainly including the U.S., Canada, Republic of Korea, Philippines, Russia, Australia, Germany, India, Yemen, Egypt and so on. If you are interested in our products or any question, please feel free to contact us and look forward to cooperating with you.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
