| Size: | 60.3-117.8 Mm | Rated Capacity: | 20-200 Short Tons |
|---|---|---|---|
| Model: | Y Series | Color: | Red |
| Material: | Alloy Steel | Warranty: | 12 Months |
| Application: | Energy & Mining | Package: | Wooden Case |
| High Light: | API Oilfield Slip Type Elevators,150T Slip Type Elevators,1350kN Mining Slip Type Elevators |
||

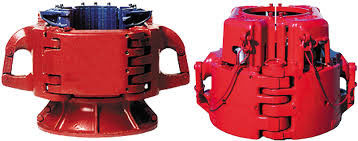

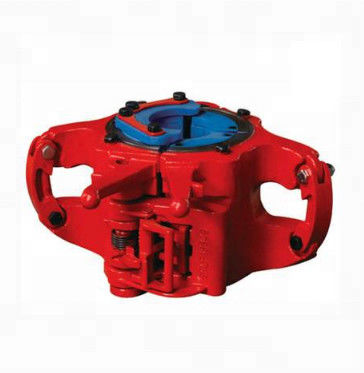

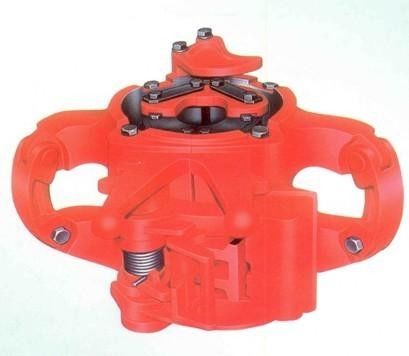

Oil Well Slip Type Elevators with Capacity 150 Ton
Product Descrption
Slip Type Elevators/ Spiders are mechanized tools with air operating.They can handle casings up to 24 1/2 inch. They are easy to operate and dependable enough. Also they can reduce workload. They are designed and manufactured according to API Spec 8A/8C Specification for drilig and production hoisting equipment.
The Y series slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It's especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The slip type manual elevators for tubing (YT, MYT) and casing (YC, HYC, MYC). The elevators hoist a variety of small casing and tubing with the proper size slips and slip setting ring installed. The slips are easily changed.
Company Service
Technical Specifications of Our Slip Type Elevator
| Model | Size | Rated Cap. | |
| mm(in) | kN | short Tons | |
| HYT | 60.3-88.9(23/8-31/2) | 1350 | 150 |
| YT |
33.4-88.9(1.315-31/2) |
675 | 75 |
| MYT | 33.4-73(1.315-27/8) | 360 | 40 |
| LYT | 26.7-52.4(1.05-11/16) | 180 | 20 |
| HYC | 88.9-139.7(31/2-75/8) | 1800 | 200 |
| MYC | 88.9-117.8(31/2-7) | 1125 | 125 |
| YC | 88.9-117.8(31/2-7) | 675 | 75 |
