Product Details:
Payment & Shipping Terms:
|
| Size: | 60.3-117.8 Mm | Rated Capacity: | 20-200 Short Tons |
|---|---|---|---|
| Model: | Y Series | Color: | Red |
| Material: | Alloy Steel | Warranty: | 12 Months |
| Medium: | Natural Gas, Crude Oil | Product Name: | Slip Type Elevator |
| High Light: | Hoisting Oilfield Handling Tools,2 3/8" Slip Type Elevator,Integral Joint Slip Type Elevator |
||

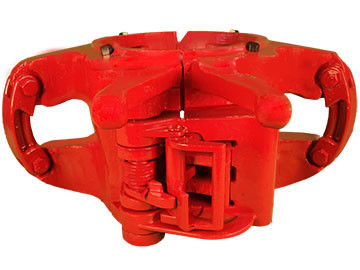

Oilfield Handling Tool HYT Slip Type Elevator Size 2 3/8"
Product Overview
The Y series slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It's especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The slip type manual elevators for tubing (YT, MYT) and casing (YC, HYC, MYC). The elevators hoist a variety of small casing and tubing with the proper size slips and slip setting ring installed. The slips are easily changed.
The elevator is designed with two (2) halves of similar weights for good balance and easier opening and closing. A guarded operating latch and an extra handle at the rear of the elevator allow for easier, safer operation. Elevators are equipped with a latch and latch lock combination. To open, pull the latch lock handle out and swing the elevator apart. The latch and latch lock secures automatically when the elevator is closed around the pipe. The load causes the slips to set when the elevator is raised, pushing down on the slip setting ring.
FAQ
1.How long is your delivery time?
It is according to the model and quantity. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Technical Data of Our Slip Type Elevator
| Model | Size | Rated Cap. | |
| mm(in) | kN | short Tons | |
| HYT | 60.3-88.9(23/8-31/2) | 1350 | 150 |
| YT |
33.4-88.9(1.315-31/2) |
675 | 75 |
| MYT | 33.4-73(1.315-27/8) | 360 | 40 |
| LYT | 26.7-52.4(1.05-11/16) | 180 | 20 |
| HYC | 88.9-139.7(31/2-75/8) | 1800 | 200 |
| MYC | 88.9-117.8(31/2-7) | 1125 | 125 |
| YC | 88.9-117.8(31/2-7) | 675 | 75 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is the professional manufacturer for solid control equipment and the drill stem testing tools. All of our tools are conformed with NACE MR 0175 with traceability, and the tools can be worked in H2S & CO2 above 175 F and full H2S, also with the skilled and experienced engineers, we can design the drill stem testing tools as per customer's well condition. Moreover, we supply the training in our factory and operation instruction at the well site. Tianrui products are exported to USA, Colombia, India, Pakistan, Iran, Brazil etc. and enjoy the good reputation from the customers.
Our customers come from all over the world, mainly including the U.S., Canada, Republic of Korea, Philippines, Russia, Australia, Germany, India, Yemen, Egypt and so on. If you are interested in our products or any question, please feel free to contact us and look forward to cooperating with you.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
