API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator

API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator
API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator

Large Image :  API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRY
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pcs Per Month
Detailed Product Description
Size: 60.3-117.8 Mm Rated Capacity: 20-200 Short Tons
Model: Y Series Surface Treatment: Spray-Paint
After-sale Service: Overseas Service Center Available Color: Red
Material: Alloy Steel Warranty: 12 Months
High Light:

API 8C Well Drill Spare Parts

,

117.8mm Slip Type Drill Pipe Elevator

,

500t Load Drill Pipe Elevator

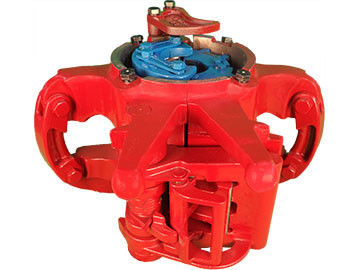

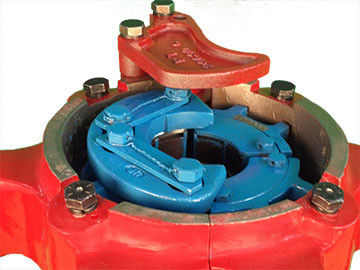

API 8C Y Series Slip Type Drill Pipe Elevator for Well Drilling



Product Overview



Drill pipe elevators are conventional center door elevators for handling square shoulder drill pipes in oil and gas drilling operation, the elevators are cast from high quality alloy steel, heat-treated, and NDT tested. the rated loads rang from 100t(1350kN) to 500t(4500kN).



The Y series slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It's especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The slip type manual elevators for tubing (YT, MYT) and casing (YC, HYC, MYC). The elevators hoist a variety of small casing and tubing with the proper size slips and slip setting ring installed. The slips are easily changed.



Company Service


1. 24 hour on-line prompt reply to your inquiry.
2. API certificate, ISO System,BV, SGS
3. Competitive price for quality-guaranteed product
4. Professional inspection department to guarantee quality
5. Fast delivery of Purchase order.
6. Reliable after-sale service.



Main Parameters of Our Slip Type Elevator



Model Size Rated Cap.
mm(in) kN short Tons
HYT 60.3-88.9(23/8-31/2) 1350 150
YT



33.4-88.9(1.315-31/2)

675 75
MYT 33.4-73(1.315-27/8) 360 40
LYT 26.7-52.4(1.05-11/16) 180 20
HYC 88.9-139.7(31/2-75/8) 1800 200
MYC 88.9-117.8(31/2-7) 1125 125
YC 88.9-117.8(31/2-7) 675 75
API 8C Well Drill Spare Parts Y Series Slip Type Drill Pipe Elevator 0
