Product Details:
Payment & Shipping Terms:
|
| Diameters Of Tubulars: | 2-3/8" To 36" | Rated Capacity: | 5 Short Tons |
|---|---|---|---|
| Weight: | 5kg~810kg | HS Code: | 8207199000 |
| Model: | SP Series | Surface Treatment: | Spray-Paint |
| Name: | API 8A/8C SP Type Single Joint Elevator | After-sale Service: | Overseas Service Center Available |
| High Light: | API 10 3/4" Tubing Drill Elevator,Center Latch Drill Elevator,Spray Paint Center Latch Elevator |
||

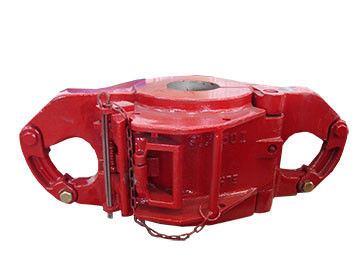

API 8A SP Type Single Joint Elevator for 10 3/4" Tubing
Product Overview
ubing Elevators are convention square center latch elevators to handle pipes in oil and gas drilling operation.They are made from high quality alloy steel with both advanced technology and heat treatment.
Our elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 dons. The size ranges are from 2 3/8 to 6 5/8 . The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for drilling and production hoisting equipment.
TR Solids Control mainly engages in offering oil drilling and production equipment and providing oilfield technical service. Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!
Product Advantage
A.Stable quality -coming from good material and technic.
B.Lower price ---Not cheapest but the lowest at the same quality.
C.Good service-satisfactory service before and after sale.
D.Delivery time-30~45 days for mass production.
Technical Data of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
