Product Details:
Payment & Shipping Terms:
|
| Diameters Of Tubulars: | 2-3/8" To 36" | Warranty: | 12 Months |
|---|---|---|---|
| Rated Capacity: | 5 Short Tons | Weight: | 5kg~810kg |
| HS Code: | 8207199000 | Appearance: | Smooth |
| Function: | Auxiliary Elevator | Max. Load: | 100-500 |
| High Light: | SJ Type Wellhead Elevator,500t Load Wellhead Elevator,Handling Single Casing Wellhead Elevator |
||

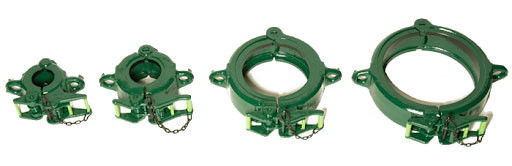

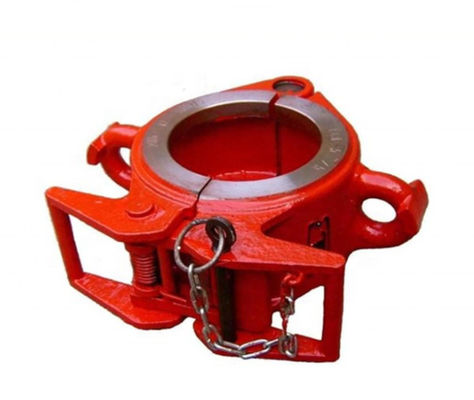

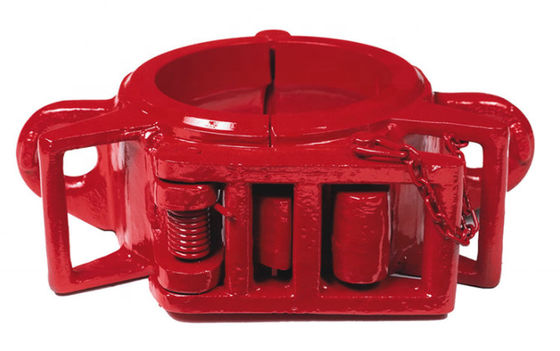

SJ Type Single Joint Elevator and Auxiliary Elevator for Wellhead
Product Overview
SJ series auxiliary elevator is mainly used as a tool in handling single casing or tubing in oil and natural gas drilling and cementing operation. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment.
SJ elevators are used to add tubular to a string, hoisting a single casing, tubing, or collared type pipe, manufactured according to API 8C.
Handling tools play a major part in modern drilling operation. They are used for suspending, moving and rotating tubulars in and round the center on the drill floor. The tools ranges from slips, elevators, manual tongs, power tongs, safety clamps, elevator links& bails, spinners, wrenches, etc. Handling tools in our factory are all manufactured to API 7K, API 8A and API 8C standard, with strict quality control and inspection.
Company Advantage
Technical Info. of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
Xi'an TianRui Petroleum Machinery Equipment Company Limited follow the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Our main products:
Drill Equipment, Well control system,OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
