Product Details:
Payment & Shipping Terms:
|
| Length: | 1100-3660mm | Diameters Of Tubulars: | 2-3/8" To 36" |
|---|---|---|---|
| Warranty: | 12 Months | Usage: | Well Drilling |
| Rated Capacity: | 5 Short Tons | Weight: | 5kg~810kg |
| HS Code: | 8207199000 | Appearance: | Smooth |
| High Light: | Type SP Single Joint Elevator,5 Ton Single Joint Elevator,API 8C Drilling Rig Elevator |
||

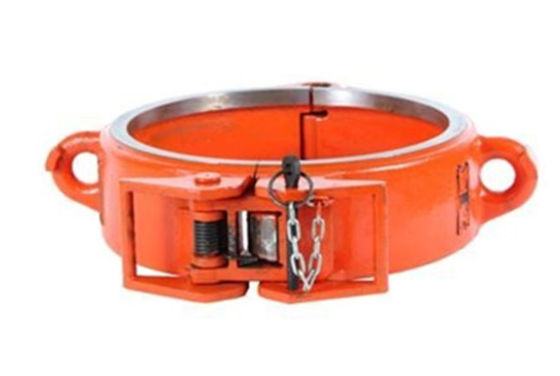

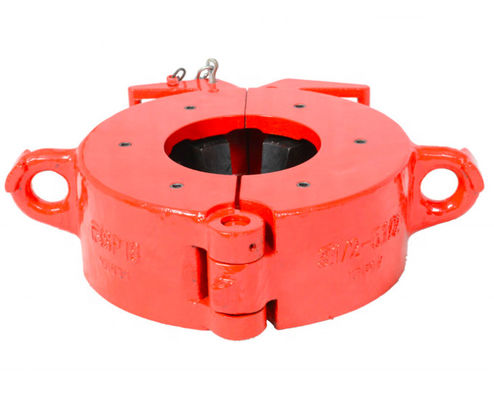

Type SP Single Joint Elevator Capacity 5 Ton for Drilling Rig
Product Overview

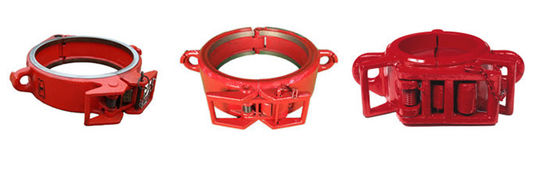

API 8A/8C Single Joint elevators model with SJ and SP are light weight elevator intended to lift single joints (segments) of pipe for assembly into the drill string. The lifting weight limit varies from 5 to 8 tons depending on the size. They are manufactured and certified under API 8C.
Handling tools play a major part in modern drilling operation. They are used for suspending, moving and rotating tubulars in and round the center on the drill floor. The tools ranges from slips, elevators, manual tongs, power tongs, safety clamps, elevator links& bails, spinners, wrenches, etc. Handling tools in our factory are all manufactured to API 7K, API 8A and API 8C standard, with strict quality control and inspection.
Characterstics of our Single Joint Elevator
Main Parameters of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
Xi'an TianRui Petroleum Machinery Equipment Company Limited follow the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier,supply chain company and oilfield engineering services company.; "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
