Product Details:
Payment & Shipping Terms:
|
| Length: | 1100-3660mm | Diameters Of Tubulars: | 2-3/8" To 36" |
|---|---|---|---|
| Material: | Alloy Steel | Warranty: | 12 Months |
| Usage: | Well Drilling | Rated Capacity: | 45 /60 KN |
| Weight: | 5kg~810kg | HS Code: | 8207199000 |
| High Light: | Casing Tubing Elevator,45kN Casing Tubing Elevator,Solids Control Cementing Tubing Elevator |
||

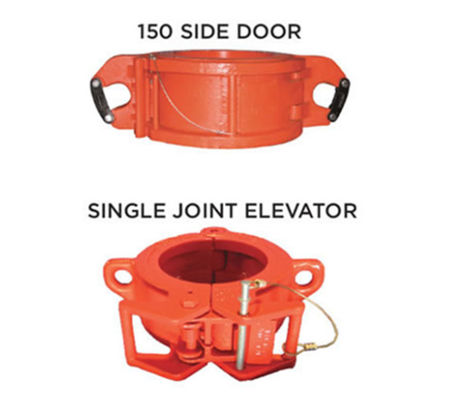

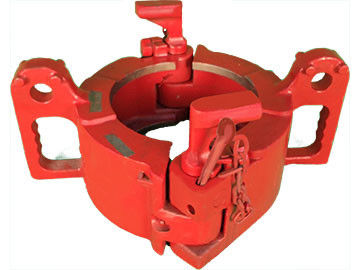

Auxiliary Single Joint Elevator for Casing and Tubing
Product Overview
API 8A/8C Single Joint elevators model with SJ and SP are light weight elevator intended to lift single joints (segments) of pipe for assembly into the drill string. The lifting weight limit varies from 5 to 8 tons depending on the size. They are manufactured and certified under API 8C.
SP series auxiliary elevators are mainly used in handling single tubings, casing and drill pipes with taper shoulder. The products shall be designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment.
Characterstics of our Single Joint Elevator
Package Type
Technical Parameters of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier,supply chain company and oilfield engineering services company.; "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.
Our Service
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by Dongying Robust at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, Dongying Robust will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
