Product Details:
Payment & Shipping Terms:
|
| Length: | 1100-3660mm | Diameters Of Tubulars: | 2-3/8" To 36" |
|---|---|---|---|
| Name: | Tubing Elevator | Advantage: | High Performance |
| Material: | Alloy Steel | Warranty: | 12 Months |
| Usage: | Well Drilling | Rated Capacity: | 45 /60 KN |
| High Light: | Single Joint Center Latch Elevator,60kN Drill Pipe Elevator,Alloy Steel Center Latch Elevator |
||

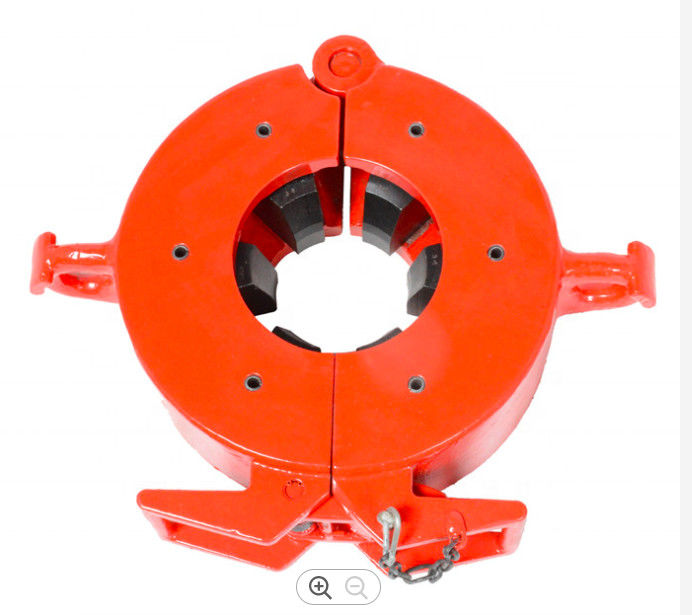

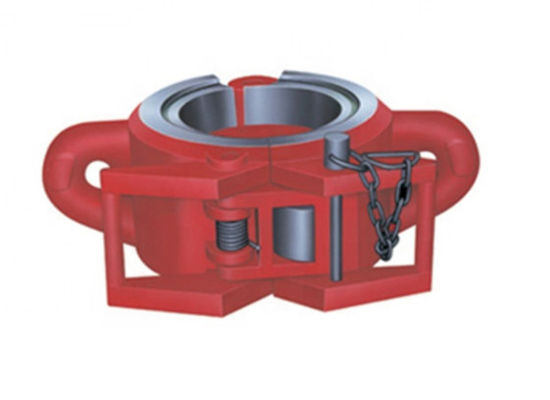

SJ Single Joint Center Latch Tubing and Drill Pipe Elevator
Product Overview
SJ series auxiliary elevator is mainly used as a tool in handling single casing or tubing in oil and natural gas drilling and cementing operation. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment.
SJ series auxiliary elevator is mainly used as a tool in handling single casing or tubing in oil and natural gas drilling and cementing operation. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment.
Package Type
Technical Data of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
