| Rated Capacity: | 5/45/60 Ton | Length: | 1100-3660mm |
|---|---|---|---|
| Diameters Of Tubulars: | 2-3/8" To 36" | Name: | SJ Single Joint Elevator |
| Applicable Industries: | Energy & Mining | Advantage: | High Performance |
| Material: | Alloy Steel | Warranty: | 12 Months |
| High Light: | Oilfield Drill Elevator,SJ Type Single Joint Drill Elevator,Drill Elevator 3660mm Length |
||

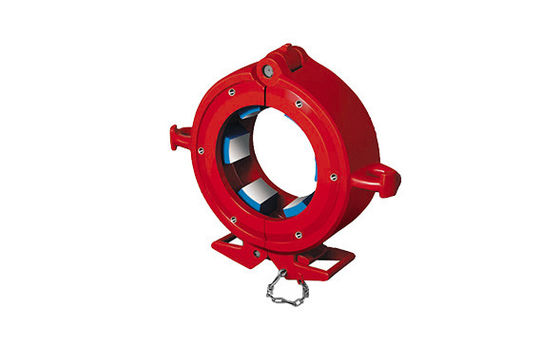

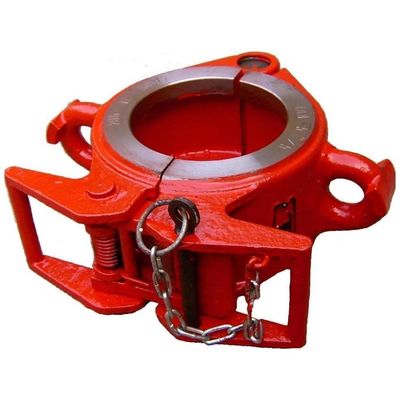

SJ Type Oilfield Auxiliary Elevators Single Joint Elevators
Product Overview
SJ series auxiliary elevator is mainly used as a tool in handling single casing or tubing in oil and natural gas drilling and cementing operation. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment.
DDZ series elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 dons. The size ranges are from 2 3/8 to 6 5/8 . The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for drilling and production hoisting equipment.
Advantages of Our Single Joint Elevator
1. Type SJ Auxiliary Elevators are designed and manufactured in Accordance with API spec 8C in our company.
2. They have a complete range of sizes.
3. They are widely used in drilling, servicing and cementing for oil and gas well.
Package Type
1. Normal packing: plywood case, wooden box or pallet.
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 1500 Kg.
4. Standard packing dimension: 1200 * 1100 * 1000 mm.
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Technical Information of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
