Product Details:
Payment & Shipping Terms:
|
| Length: | 1100-3660mm | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Red, Blue, Etc | Rated Capacity: | 5/45/60 Ton |
| Diameters Of Tubulars: | 2-3/8" To 36" | Name: | SJ Single Joint Elevator |
| Applicable Industries: | Energy & Mining | Advantage: | High Performance |
| High Light: | Oilfield Wellhead Single Joint Elevators,2 3/8" Pipe Single Joint Elevators,45t Single Joint Elevators |
||

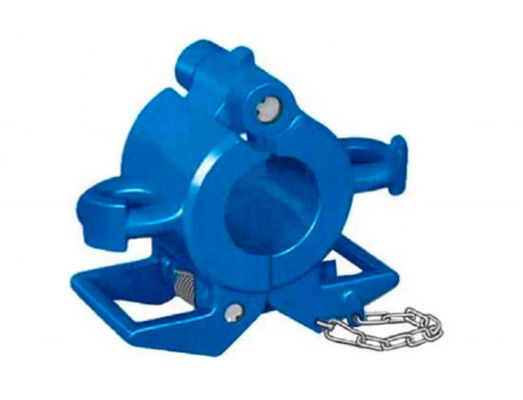

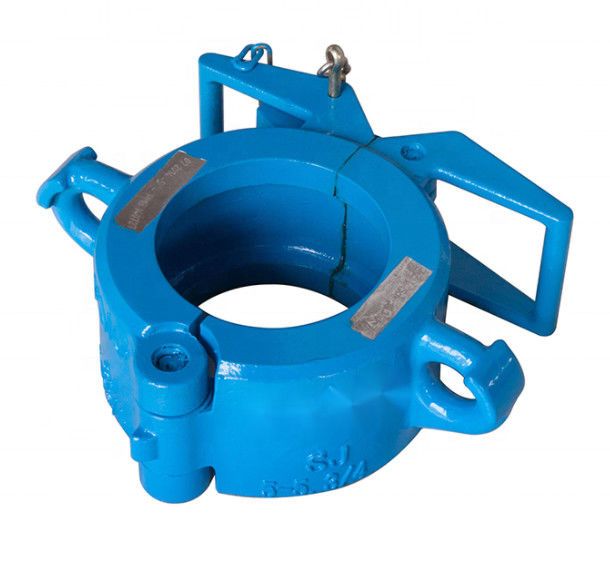

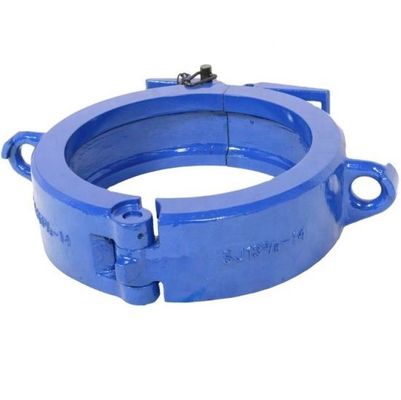

Oilfield Wellhead Single Joint Elevator for 2 3/8" Pipe
Product Overview
Elevators, as developed for the drilling industry, are a hinged device with handles that are used to wrap around the tool joint of drill pipe, casing (for collars) to facilitate the lifting or lowering of them singly or of the drill string as a whole.
DDF type center latch single joint elevators are conventional tools for handling a single joint of casing or tubing in oil and gas drilling operation, the rated load are 5t(45kN) and 10t(90kN), and cover pipe sizes from 4?in to 20in OD. SJ single joint elevators are designed and manufactured in accordance with API Spec 8C.
Package Type
1. Normal packing: plywood case, wooden box or pallet.
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 1500 Kg.
4. Standard packing dimension: 1200 * 1100 * 1000 mm.
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Advantages of Our Single Joint Elevator
Technical Parameters of Our Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
