| Length: | 1100-3660mm | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Red, Blue, Etc | Rated Capacity: | 5/45/60 Ton |
| Diameters Of Tubulars: | 2-3/8" To 36" | Name: | SJ Single Joint Elevator |
| Applicable Industries: | Energy & Mining | Advantage: | High Performance |
| High Light: | Well Drill Pipe Elevator,60T Well Drill Pipe Elevator,API 8A Well Drill Pipe Elevator |
||

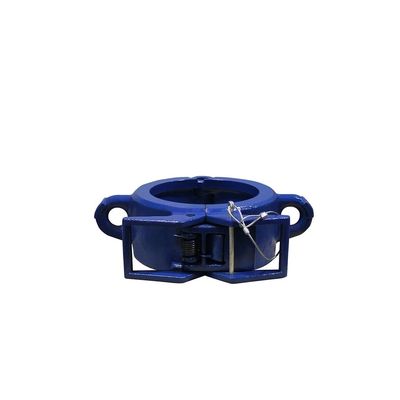

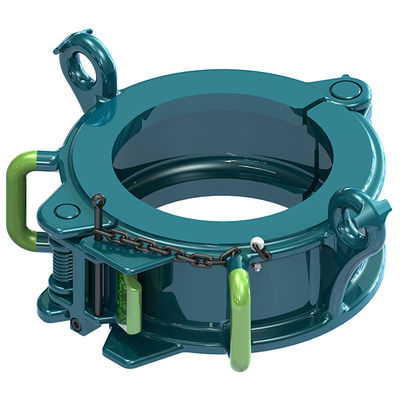

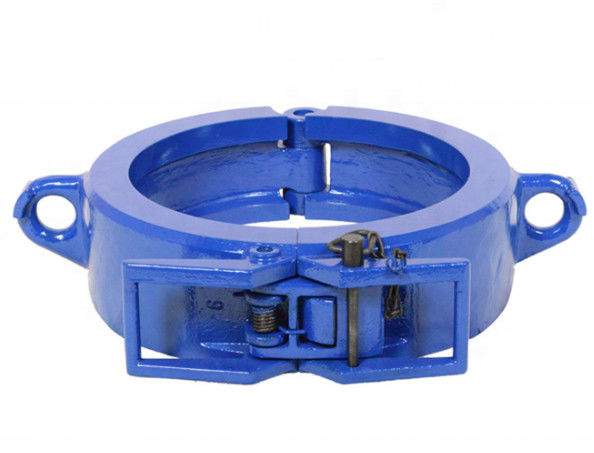

API 8A/8C SJ Single Joint Elevator for Well Drilling
Product Profile
Elevators, as developed for the drilling industry, are a hinged device with handles that are used to wrap around the tool joint of drill pipe, casing (for collars) to facilitate the lifting or lowering of them singly or of the drill string as a whole.
API 8A/8C Single Joint elevators model with SJ and SP are light weight elevator intended to lift single joints (segments) of pipe for assembly into the drill string. The lifting weight limit varies from 5 to 8 tons depending on the size. They are manufactured and certified under API 8C.
Packaging & Delivery
Selling Units: Single item
Single package size: 50X50X30 cm
Single gross weight: 30.000 kg
Package Type
1. Normal packing: plywood case, wooden box or pallet.
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 1500 Kg.
4. Standard packing dimension: 1200 * 1100 * 1000 mm.
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Technical Data Sheet of Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of solid control equipment and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include solid control equipment, cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries.
We are primary supplier of CNPC (china national petroleum company). We can guarantee the successful delivery time for your overseas bidding projects, and guarantee the purchase of China's first-class oil equipment, and make sure your end user are satisfied with our wellhead equipment and tools. If you need to buy a well head tool with stable quality and more than 20 years of history, please feel free to contact us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
