Product Details:
Payment & Shipping Terms:
|
| Length: | 1100-3660mm | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Red, Blue, Etc | Rated Capacity: | 5/45/60 Ton |
| Application: | Handling Tools | Diameters Of Tubulars: | 2-3/8" To 36" |
| Processing Type: | Forging | Name: | SJ Single Joint Elevator |
| High Light: | Center Latch Type Single Joint Elevator,Oilfield Single Joint Elevator,Drilling Single Joint Elevator |
||

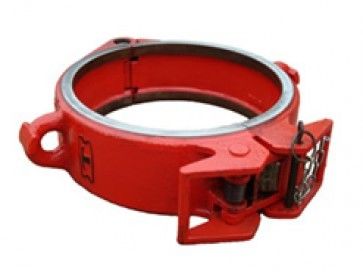

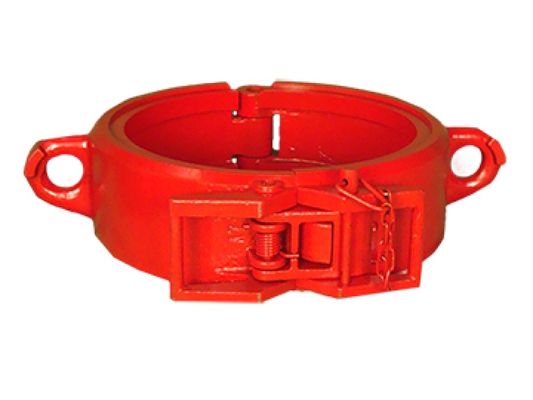

Oilfield Center Latch Type Single Joint Elevator Type SJ
Product Profile
Elevators, as developed for the drilling industry, are a hinged device with handles that are used to wrap around the tool joint of drill pipe, casing (for collars) to facilitate the lifting or lowering of them singly or of the drill string as a whole.
Type SJ, type SP and type SJX single joint elevators are designed and manufactured in Accordance with API spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SJ single joint elevators are the requisite hoisting tools for catching single pipe up and down. Type SP single joint elevators are the requisite hoisting tools for catching pipe with degree up and down.
Specialities of Our Single Joint Elevator
Main Specifications of Single Joint Elevator
|
Size
|
Rated Cap.
|
|
|
in
|
mm
|
kN
|
|
2-3/8 ~ 2-7/8
|
60.3-73.03
|
45
|
|
3-1/2 ~ 4-3/4
|
88.9-120.7
|
|
|
5 ~ 5-3/4
|
127-146.1
|
|
|
6 ~ 7-3/4
|
152.4-193.7
|
|
|
8-5/8 ~ 10-3/4
|
219.1-273.1
|
|
|
11-3/4~13-3/8
|
298.5-339.7
|
|
|
13-5/8 ~ 14
|
346.1-355.6
|
|
|
16 ~ 20
|
406.4-508.0
|
|
|
21-1/2 ~ 24-1/2
|
546.1-622.3
|
60
|
|
26 ~ 28
|
660.4-711.2
|
|
|
30 ~ 36
|
762.0-914.4
|
|
|
Model
|
Size
|
Rated Capacity
|
|
SP5°
|
2-3/8" ~ 10-3/4"
|
5 ton
|
|
SP12°
|
2-3/8" ~ 4-1/2"
|
|
|
SP18°
|
2-7/8" ~ 6-5/8"
|
|
Model
|
Size (in)
|
Rated Cap.(short Tons)
|
|
SJX-5
|
2-3/8 `~ 4-1/2
|
5
|
|
SJX-5
|
4-1/2 ~ 7
|
|
|
SJX-5
|
7 ~ 10
|
|
|
SJX-5
|
10 ~ 14
|
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
We are primary supplier of CNPC (china national petroleum company). We can guarantee the successful delivery time for your overseas bidding projects, and guarantee the purchase of China's first-class oil equipment, and make sure your end user are satisfied with our wellhead equipment and tools. If you need to buy a well head tool with stable quality and more than 20 years of history, please feel free to contact us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
