Product Details:
Payment & Shipping Terms:
|
| Rated Capacity: | 50-150 Tons | Standard: | API 8A/8C |
|---|---|---|---|
| Package: | Wooden Case | Warranty: | 12 Months |
| Type: | DH | Length: | 1500/1700 Mm |
| Usage: | Oil And Gas | ||
| High Light: | Oilfield Single Arm Weldless Links,Solids Control Weldless Links,1500mm Length Weldless Links |
||

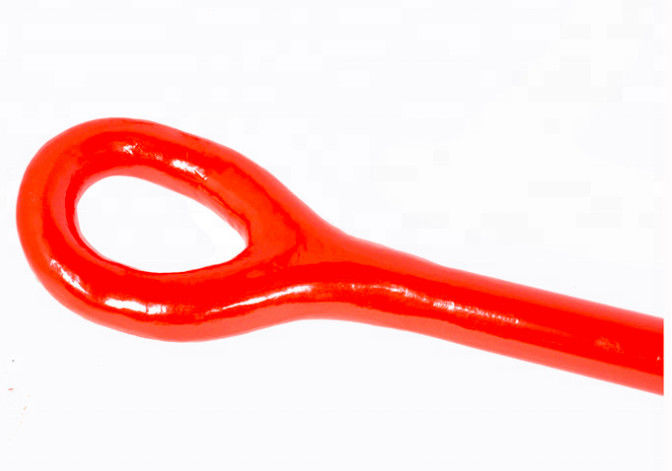

Oilfield Single Arm Weldless Links DH 500 Elevator Link
Product Overview
Elevator Links are designed to hang elevators from Top Drive System or Hooks. Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated and MPI tested. Additional material is added in critical wear areas for extended life. The design safety factor and design verification of the elevator links conform to requirements of API Spec 8A or API Spec 8C, any elevator links are proof load tested to 1.5 times the working load. Each elevator link of one pair is marked with Serial Number for traceability.
Rating loads of perfection links series are 50 ton, 65ton and 75ton. For perfection links rated 100 ton or 150ton, contact manufacturer to order. For perfection link compatibility purpose, not to use perfection links which have a capacity too low for carrying the load intended (dynamic+static), Warranty period of perfection links is 12 months from the date of field service or 18 months from date of shipment.
Information of DH Weldless Link
DH forged elevator links are designed to hang elevators from Top Drive System or Hooks in drilling operation. Read the Manual before use elevator links.
Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated, surface-strengthen treated and NDT for super performance and long service.
The rating loads of elevator links series are 150t(1350kN),200t (1800kN),250t (2250kN),350t (3150kN),500t (4500kN).
All the technical data and properties of elevator links completely conform to the requirements of SY/T 5035 and API Spec 8C.

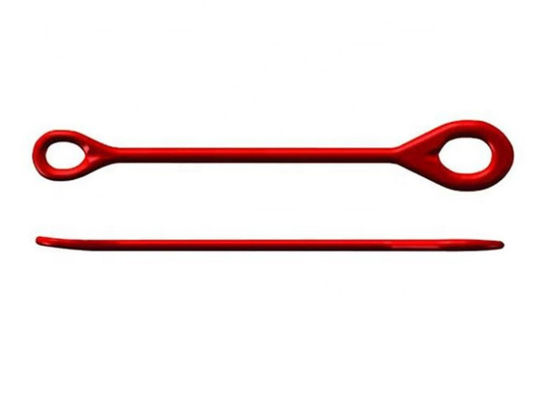

Structural of DH Elevator Links

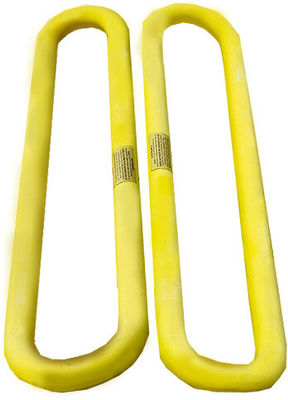

Elevator links can work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator.
Technical Sheet Data of Our Oilfield Elevator Link
| Specifications | DH 150 | DH 200 | DH 250 | DH 350 | DH 500 |
| Rating loads | 150ton | 200 ton | 250 ton | 350 ton | 500 ton |
| Length (cm) | 180 | 270 | 270 | 330 | 360 |
| Specifications | SH 50 | SH 65 | SH 75 |
| Rating loads | 50t | 65t | 75t |
| Length (cm) | 110 | 150 |
180
|
Xi'an TianRui Petroleum Machinery Equipment Company was established in 2010 and located in Xi'an city, Shaanxi Province of Chia, covers an area of more than 330 million square meters. Our main products include: oilfield drilling rig and workover rig and their parts,wellhead tools, BOP and spare parts,mud pump spare parts, solid control equipment.
Our main products:
Drill Equipment, solid control equipment, Well control system,OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
